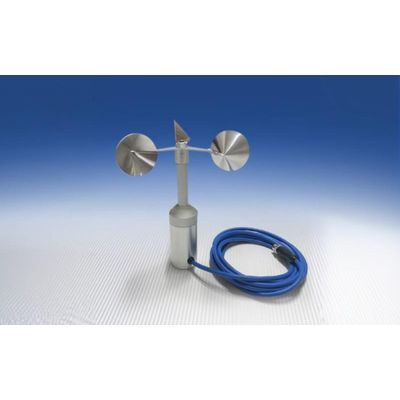

Windmeter - Digital Anemometer

WindMeter has been designed to give reliable readings.

The sensor has a mechanical plug-and-play. The use RS485 digital output simplifies the wiring especially in stations with multiple instruments and gauges, so that it’s possible to create a unique chain (bus) at the confluence of the different sensor data.

WindMeter is available with a M8-4 pole connector that allows a faster and superior installation and maintenance, as well as the possibility of installing a multi-probe plug&play for easier maintenance controls.

It is compatible with the Ammonit Meteo-40 data-logger (on bus RS485).

Also available in the MEASNET centre’s calibrated version.

• Standard Modbus RTU RS485 port to assure correct reading even at 500m distance.
• Average and maximum wind speed measurement
• Temperature measurement
• Extreme weather resistance
• Ease of installation to the structures
• Calibrated one by one, for maximum accuracy
• Anti-icing option

NAME: WindMeter

• PRODUCT: Digital anemometer or digital wind gauge
• REFERENCE STANDARDS: IEC 61400-12-1, MEASNET (on request)
• Output: Serial interface RS485
• Measured values:
• Wind speed: 0÷50 m/s (0-180 km/h)
• Internal temperature: -30 ÷ +85°C
• Calibration: Individual according to IEC 61400-12-1; Optional: MEASNET

Measured quantity: Time interval: Unit

• Instantaneous speed: 5s: m/s; km/h; ft/s; knot; mph
• Instant direction: 5s: ° sexadecimal degree.
• Average speed: 1; 2; 5; 10: min m/s; km/h; ft/s; knot; mph
• Average direction: 1; 2; 5; 10 min: ° sexadecimal degree.
• Vector result speed: 5s: m/s; km/h; ft/s; knot; mph
• Vector result direction: 5s: m/s; km/h; ft/s; knot; mph
• Vector average speed: 1; 2; 5; 10: min m/s; km/h; ft/s; knot; mph
• Average vector direction: 1; 2; 5; 10: min m/s; km/h; ft/s; knot; mph
• Accuracy: Wind speed:
• ± 3% (Measnet calibrated); Correlation > 0,99995 St.Err 0,022m/s
• Internal temperature: ± 3°C (-30 to +85°C)
• Supply:
• 5 ÷ 40 Vdc / 9 ÷ 28 Vac, consumption <1 W
• Protected against reverse polarity and overvoltage
• Power consumption < 500mW (except heater)
• Protection: IP65 Electronic circuit sealed
• Case: Aluminum with 3 screws for direct mounting on poles up to Ø 35mm
• Cable: 3m long, 4 conductors
• Connector: Optional
• Dimensions (mm): Body: 223h x 44 Øext; 36 Øint
• Options: Heater anti-icing thermoregulated

To achieve optimum measurement during installation, please refer to the Annex G in the IEC 61400-12-1 standard.

Producer: Datalogger / Inverter model

• Ammonit:
• Ammonit datalogger Meteo-40
• Meteo Station: Series Lufft – WS 200
