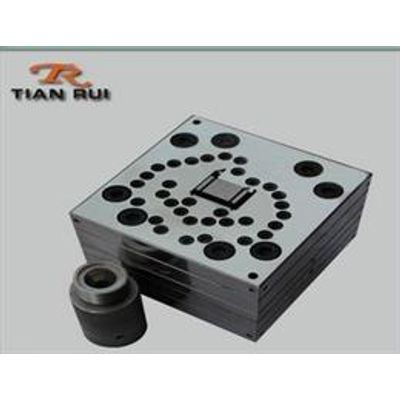

Tianrui - Window and Door Profile High Speed Mould
The hanger design of the flowing channel makes the melt in the die head even and easy to adjust. The hidden heating system is convenient to operate and it guarantees the precision of the forming product. The calibrator is supported by cylinder adjustment, making it easier to operate.
Most popular related searches
Hubei TianRui Window and Door Profile Mould Characteristics：
The extrusion die head design:
- Use the removable positioning device, making it easier to disassemble.
- Precise material flow control and stable extrusion.
- The hidden heating design has increased the brightness of the product surface.
- The special balance of the pressure holes has lowered the rejection rate.
The extrusion calibrator design:
- The automatically adjusting positioning key gives it a precise size
- The tapered design of the styling sets has increased the production speed greatly.
- The inlet end is independent vacuum and shapes well.
- The camber adjusting device ensures that the line is straight.
Extrusion cooling design:
- Double vacuum system promotes the molding.
- The combination design of eddy current and spray makes it cools fast..
- The self-adjusting water tank panels are easy to adjust.
- The stainless steel frame type system can prevent damage.
- The special influent distribution gives it a cooling balance.
