Blobel - Model Type BL/FAP–P1 -Window Barrier Cover Plate

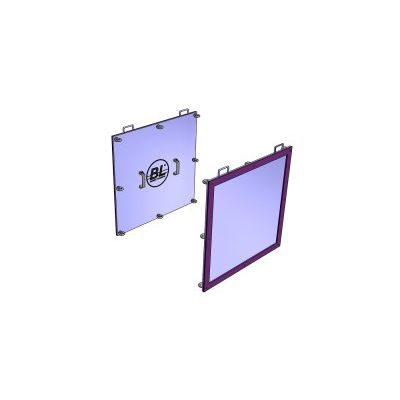

The window barrier plate is comprised of a flat aluminium plate or alternatively of a steel plate with multiple reinforcements. Both systems are equipped with handles and eyelets for hanging purposes. Depending on the ground/surface at hand, the sealing surface is made up of an adapted, closed-celled flexible neoprene seal or a special compressible polyurethane-based foam seal. Contact pressure takes place by means of massive, reinforced steel contact pressure rails.

The aluminium barrier sections have a polished bare metal finish. Steel components are galvanized. Paint finish or powder coating upon request. Special wall mounts upon request.

FAP–P

• Flat window cover
• bolted

• Ease in handling, reliable retaining protection
• Manufactured in accordance with LGA Test Guideline 3/93
• Quality-controlled (Ing.-Biiro Blobel, Friedberg, Germany)
• Field-tested

• Standard length: 200–2000 mm
• Special situations: up to 4000 mm
• Standard width: 200–1500 mm
• Special situations: up to 2000 mm
• Thickness: 5–10 mm
