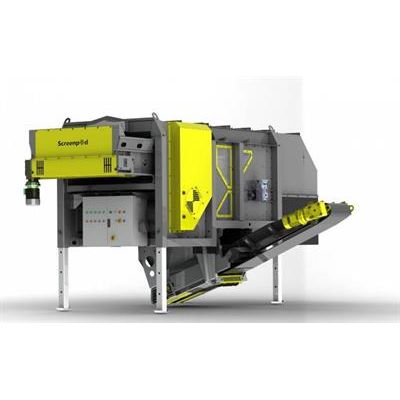

Screenpod Airtrac - Model 1500 -Windshifter

• 2 X 7.5 Kw high energy blower units
• On-board electrical control panel
• Infinitely variable infeed system
• Optional fold-away stockpile conveyor
• Fast on site setup time – 10 minutes
• Fully adjustable air recirculation system

DIMENSIONS AND WEIGHT (C/W CONVEYOR):

• Length – working: – 6.60m (21’ – 8”)
• Width – working: – 4.18m (13’ – 9”)
• Length – transport: – 5.64m (18’ – 6”)
• Width – transport: – 2.63m (8’ – 7 1/2”)
• Height – transport: – 3.15m (10’ – 4”)
• Weight: – 5,540 Kg (12,215 lbs)

DIMENSIONS AND WEIGHT (STANDARD):

• Length – working: – 6.60m (21’ – 8”)
• Width : – 2.33m (7’ – 8”)
• Length – transport: – 5.64m (18’ – 6”)
• Height – transport: – 2.16m (7’ – 1”)
• Weight: – 4,650 Kg (10,250 lbs)
