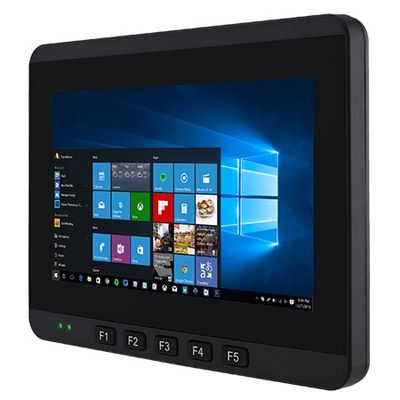

Winmate - Model FM07E -7inch Windows Vehicle Mounted Computer with Intel Celeron N6211

SHARE

Intel® Celeron® N6211 Elkhart Lake, Windows Vehicle Mounted Computer; 7” 1024 x 600 panel with projected capacitive Multi-Touch screen; Wide power input 9-36V DC with ignition; M12 waterproof connectors; IP65 waterproof and dustproof; Shock and vibration resistance according to MIL-STD-810G.

Most popular related searches
shock and vibration
GPS antenna
waterproofing
IoT system
GNSS
vibration control
Vibration and shock-proof design ensure reliable performance

Winmate FM07E builds to survive with its rugged enclosure that enhances the FM07E’s durability. Vibration and shock resistance compliance with MIL-STD-810G standard, IP65 rating with M12 water- and dustproof connectors. Suitable for various in-vehicle mounting and industrial applications.

Programmable Function Keys

Save time finding your commonly used application with the programmable function keys. Customize each button’s function and its combinations to fit your needs.

High-Performance CPU

To support the next generation of IoT edge devices, FM07E is equipped with a new line of processors enhanced for IoT—The Intel Elkhart Lake Series processors. Improve processing capabilities and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.

Built to Survive

Winmate’s FM07E is built to survive the extreme temperature range. It can operate through extreme cold -20°C to 60°C heat. Suitable for cold chain, logistic, warehouse, and industrial applications.

Display

Size: 7 inches
Touch / Glass: Projected Capacitive Multi Touch Screen
Resolution: 1024x600
Panel Brightness: 1000 nits
Contrast Ratio: 700:1
View Angles: 75,75,75,70
Active Area: 153.6x90 mm

System Specification

Processor: Intel Celeron N6210 1.2GHz (up to 2.6GHz)
Memory: 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional)
Storage: 1 x M.2 2242 SSD 128GB
Ethernet controller: 1 x Intel® Ethernet Controller
Security: TPM 2.0
Operating System: Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 20.04 (Optional)
WLAN: Support
BT: Support
WWAN: 4G/LTE (Optional)
GNSS: GPS, GLONASS

Environment

Operating Humidity: 10% to 95% RH
Operating Temperature: -20°C~60°C
Storage Temperature: -20°C~60°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
IP rating: IP65, Dustproof and Waterproof

Certification

Certification: CE, FCC

IO Ports

USB Port: 2 x USB for DB9
Serial Port: 1 x COM Port
LAN: 1 x Gigabit Ethernet LAN 10/100/100 Mbps (M12 type)
Audio: 1x Speaker
SIM Card Slot: 1 x SIM Card Slot
Front Control: 5 x Function Key
Indicator: Power, HD
DIDO: DIDO (5XDI ; 3XDO)
CANBUS: 2 x CANBUS

Control

Button: 1 x Power Button, 5x Function Button (Programmable Function Key Configured by Winset)

Mechanical

Dimension: 190 x 146 x 40 mm
Weight: 1.25 kg
Mounting: RAM Mount
Cooling System: Fanless Design

Accessory

Accessory: User Guide M12 LAN Cable, 1.8m RS-232 Cable, 1.8m M12 Power Cable, 1.8m USB Cable, 0.3m CANBus and DIDO Cable, 1.8m WLAN Antenna Power Converter Cable Power Adapter
Optional Accessory: WWAN Antenna x 2 (Optional) Audio Cable, 0.3m (Optional) GPS Antenna, 3m (Optional)

Power

Power Rating: 9V-36V, with ignition control
