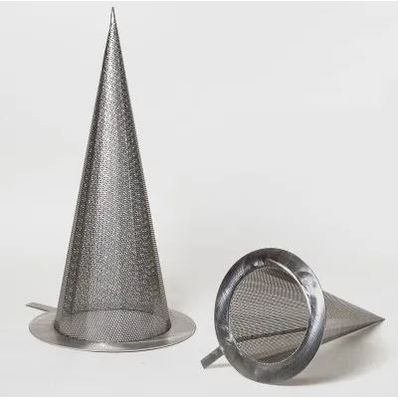

DEZE - Wire Mesh Temporary Cone Strainer
Wire mesh temporary cone strainer is a woven wire mesh perforating device used to capture particles in pipes. We can weld the mesh cone around the entire circumference of the flange ring. This provides strength and prevents unnecessary bypassing. It is woven wire mesh by precise measurement so the opening size of the mesh is absolute. Wire mesh temporary cone strainers are used to start new or retrofitted piping systems. They will prevent damage to downstream equipment from waste waste.
Most wire mesh sizes must have perforated metal brackets. Because the wire is heavy enough, no additional support material is needed to achieve the required strength. If the filter points upstream or into the water stream, the wire mesh will be placed on the outside of the perforated support and inside for downstream installation. The wire mesh layer of the wire mesh temporary cone strainer adopts the seam welding process. We offer wire mesh and perforated metal in a variety of sizes and materials. A larger wire mesh temporary cone strainer will require thicker perforated material, so the hole diameter will increase accordingly.
In many applications, wire mesh temporary cone strainers are very cost-effective filtration solutions. If the amount of material to be removed from the flow is relatively small, resulting in long screen cleaning intervals, manually clean the screen by closing the line and removing the screen cover, s are devices that mechanically remove excess solids from liquid, gas or vapor lines through perforated or wire mesh filter elements. It is widely used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.
- Material: Stainless Steel304,316/Titanium/Galvanized/Aluminum,etc
- Shape: Cone, Basket
- Thickness: 0.6mm-1.8mm
- Diameter: 30mm-60mm, customized
- Technology: Welded, Perforated, Woven.etc
- Mesh: 20-200mesh
- Layer: single layer or multiple layers
- Weaving Types: plain weave, twill weave, dutch weave, etc.
- Filtration Precision: 1 urn - 200um
