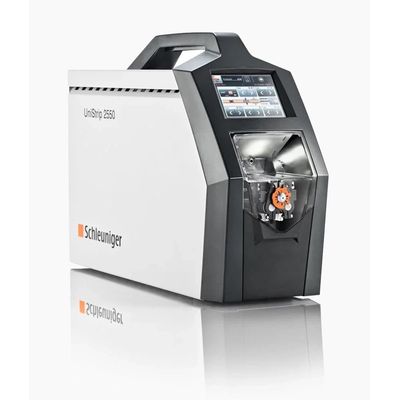

Schleuniger UniStrip - Model 2550 -Wire Stripping Machine
The programmable UniStrip 2550 strips wires ranging in size from 0.03 - 6 mm² (32 - 10 AWG) and jacketed cables up to 5.5 mm (0.22”) in diameter. The UniStrip 2550 offers high precision and flexibility with V-blades, which work for most wires without the need for blade changes. The machine can also be equipped with radius, die, or flat blades, which are used for difficult-to-strip insulations such as Teflon, Kapton, and Kynar, typically used in the military and aerospace market.Using the color touchscreen or barcode scanner, the operator selects the desired wire size from the preprogrammed library, and all parameters (cutting diameter, clamping pressure, blade way back, etc.) are automatically set.The operator can edit the stripping and pull-off lengths as required. A very sensitive trigger sensor ensures high precision even with small, flexible wires. While processing, the operator has a clear view of the entire working area.
UniStrip 2550
Metric
- Options: Foot pedal, special clamping jaws, Air jet
- Wire outer diameter min.: 0.25 mm
- Wire outer diameter max.: 5.5 mm
- Number of entries in the article library: 1,000 cables
- Strip length min.: 0.1 mm
- Strip length max.: 43 mm
- Increment of strip length: 0.1 mm
- Pull-off length min.: 0.1 mm
- Pull-off length max.: 22 mm
- Break-out length min.: 10 mm
- Insulation material: PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc.
- Blade: 2 blades linear, horizontal, special blades
- Incision diameter increment: 0.01 mm
- Wire cross section min.: 0.03 mm²
- Wire cross section max.: 6 mm²
- Gripping force: programmable
- Piece output max.: 2800 pcs/h
- Noise level: <70 dB
- Electrical connection: 100/115 VAC, 230/240 VAC, 65W / 50/60 Hz
- Compressed-air connection: 5-7 bar
- Compressed-air quality: Dry, filtered (10 μm), oil-free
- Weight: 9.4 kg
- Dimensions/length: 390 mm
- Dimensions/width: 130 mm
- Dimensions/height: 280 mm
- Temperature operation: 5 - 40 °C
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Cycle time: 0.35 sec
- Cycle time depending on: depending on cross-section, strip length and pull-off length
- Data interface: Foot pedal, USB "Host"
- User interface: color touch panal
- Trigger: Automatic trigger sensor or optional foot pedal
- CE conformity: The UniStrip 2550 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Imperial
- Options: Foot pedal, special clamping jaws, Air jet
- Wire outer diameter min.: 0.001 in
- Wire outer diameter max.: 0.22 in
- Number of entries in the article library: 1,000 cables
- Strip length min.: 0.004 in
- Strip length max.: 1.69 in
- Increment of strip length: 0.004 in
- Pull-off length min.: 0.004 in
- Pull-off length max.: 0.86 in
- Break-out length min.: 0.394 in
- Insulation material: PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc.
- Blade: 2 blades linear, horizontal, special blades
- Incision diameter increment: 0.001 in
- Wire cross section min.: AWG32
- Wire cross section max.: AWG10
- Gripping force: programmable
- Piece output max.: 2800 pcs/h
- Noise level: <70 dB
- Electrical connection: 100/115 VAC, 230/240 VAC, 65W / 50/60 Hz
- Compressed-air connection: 75 - 105 psi
- Compressed-air quality: Dry, filtered (10 μm), oil-free
- Weight: 21 lb
- Dimensions/length: 15.3 in
- Dimensions/width: 5.1 in
- Dimensions/height: 11.0 in
- Temperature operation: 41 - 104 °F
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Cycle time: 0.35 sec
- Cycle time depending on: depending on cross-section, strip length and pull-off length
- Data interface: Foot pedal, USB "Host"
- User interface: color touch panal
- Trigger: Automatic trigger sensor or optional foot pedal
- CE conformity: The UniStrip 2550 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
