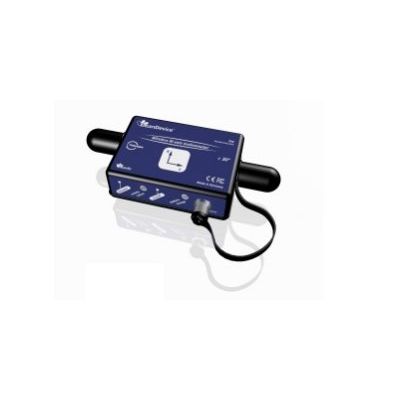

BeanDevice - Model Inc -Wireless Bi-Axis Inclinometer with Data Logger
Available in several versions (±30°or ±90° bi-axis), the BeanDevice INC is a wireless accelerometer with integrated data logger.Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x21mm, 155g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 650 meters (L.O.S.), this wireless inclinometer is well suited for all types of industrial applications.
While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® INC integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.
The combination of a high performance MEMS inclinometer and a 5th order anti-aliasing filter (remotely programmable by the user) enables a great accuracy (±0.1° ).
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® or OPC DA available on our BeanScape® (Premium+ & Cloud versions only).
The BeanDevice® INC is suitable for the following applications:
- Platform Leveling and stabilization
- Built-in test equipment
- Tilt measurement (Building, infrastructure & construction)
- Oil drilling
- Axial rotor measurement
- Low-cost wireless inclinometer based on MEMS technology
- Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
- Maximum Radio Range: 650 m (L.O.S)
- Excellent radio link budget thanks to our antenna diversity innovative design
- Measurement range: ±15° or ±30° mono-axial and bi-axial
- MEMS Inclinometer with a high resolution 0.001° and a good accuracy (±0.1°)
- Maximum sampling rate: 60 samples per second
- Non-contact actuation for faster and safer installation
- Current consumption in sleep mode: < 35 uA @3.3V
- Embedded Data Logger: up to 1 million data points (with events dating)
- Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC)
- Anti-aliasing Butterworth filter (5th order) with a programmable cut-off frequency 1 Hz to 2 KHz
- Waterproof (IP67 | Nema 6) aluminum casing (dimensions Lxlxh: 80x55x21 mm—weight 155g)
- TimSync function: Time-synchronization over the Wireless Sensor Networks with an accuracy of ±2.5
