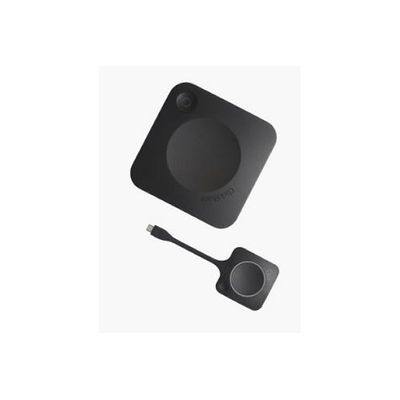

Barco ClickShare - Model CX-20 -Wireless Conferencing Systems

Start a huddle meeting from your device

With ClickShare CX-20, it’s easier than ever to start remote huddle meetings from your device, bringing a seamless and immersive conferencing experience to all participants, whether local, guest or remote. Use your preferred conferencing software combined with the ClickShare Conferencing Button and you can start your conference in less than seven seconds. The CX-20 connects wirelessly to existing huddle room cameras, speakerphones and audio peripherals, saving time and maximizing efficiency.

Decide how you want to collaborate

ClickShare CX-20 provides you with exceptional flexibility and choice, enabling you to decide just how you want to collaborate. Whether you’re on PC, Mac or mobile, the ClickShare Wireless Conferencing Button and ClickShare Collaboration App facilitate a user experience that’s both straightforward and consistent. In addition to its multi-device compatibility, ClickShare CX-20 is also fully compatible with your conferencing platform (UC) technology and a wide range of USB-peripherals. Additional features such as local view of the room display help to optimize the experience.

Enhanced security and seamless integration

A perfect fit for any business environment, the ClickShare CX-20 wireless conferencing system comes equipped with a selection of great features for enhanced security and seamless integration. ClickShare Conference provides hassle-free integration with any IT network, while the XMS (Cloud) Management Platform provides for easy device management, as well as an intuitive user experience and clear analytics to get more out of your digital workspace. For practical questions on network deployment of the ClickShare Conference range, check our technical support or get in touch with your Barco contact

• ClickShare Base Unit dimensions
• Dimensions (HxWxD) : 34 mm x 135 mm x 135 mm
• Power supply : Standard 110/220 V AC plug
• Power consumption : Operational: 5-10W, 24W Max
• Weight : 900 gr

General specifications

• Operating system :
• Windows 8/8.1/10. macOS 10.13 and higher.
• Android v9 and higher (ClickShare App)
• iOS 12 and higher (ClickShare App)
• System requirements :
• For a smooth experience with Microsoft Teams or Zoom.
• Minimum:
• Intel i3 dual-core processor
• 8GB RAM
• OS:
• Windows 10 latest build
• Mojave latest build
• Recommended:
• Intel i5 4-core processor
• 8GB RAM
• OS:
• Windows 10 latest build
• Mac OS latest build
• Video outputs  : 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b
• Audio output : USB, HDMI
• USB : 1 X USB-A, 1 X USB-C
• ClickShare Buttons : 1
• ClickShare App : Desktop & Mobile
• Native protocols : Airplay, Google Cast, Miracast
• Noise Level :
• Max. 25dBA @ 0-30°C
• Max. 30dBA @ 30-40°C
• Authentication protocol :
• WPA2-PSK in stand alone mode
• WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
• Wireless transmission protocol : IEEE 802.11 a/g/n/ac and IEEE 802.15.1
• Reach :
• Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
• Frequency band 2.4 GHZ and 5 GHz (DFS)
• Frequency band : 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
• Connections :
• 1x Ethernet LAN 1Gbit
• 1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)
• Temperature range :
• Operating: 0°C to +40°C (+32°F to +104°F)
• Max: 35°C (95°F) at 3000m
• Storage: -20°C to +60°C (-4°F to +140°F)
• Humidity :
• Storage: 0 to 90% relative humidity, non-condensing
• Operation: 0 to 85% relative humidity, non-condensing
• Anti-theft system :
• Kensington lock
• Certifications :
• FCC/CE
• Touch screen support & Interactivity : /
• Room Dock (peripheral support) : Yes
• Local view & moderation : Local view of the room display only
• Network connection : LAN & WiFi *
• Management and reporting : Yes
• Warranty : 1 year standard. 5 years coverage via SmartCare
