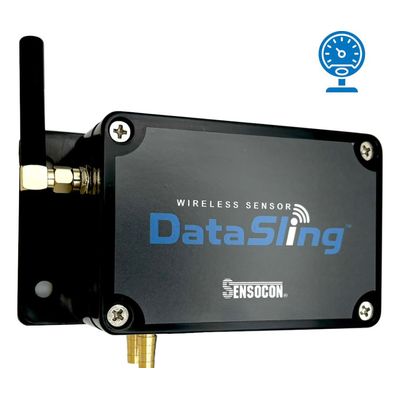

Sensocon LoRaWAN - Model Series WS-DP -Wireless Differential Pressure Sensors
Sensocon® DataSling™ Wireless Differential Pressure Sensors are high-precision devices engineered for accurate monitoring of pressure changes across various environments. Encased in an IP65 weatherproof housing, these sensors are designed for both indoor and outdoor installations, providing reliable performance in a wide range of conditions. Leveraging LoRaWAN wireless technology, these sensors offer long-range, low-power communication, making them ideal for installations in challenging or remote locations. The extended battery life, often lasting several years, ensures minimal maintenance and uninterrupted monitoring even in hard-to-reach areas.
These sensors seamlessly integrate with the Sensograf™ device management and data visualization platform, providing real-time access to pressure data, empowering users to track pressure fluctuations, set thresholds, and receive alerts when preset conditions are met. The rugged design and straightforward integration into Sensograf™ make these sensors an ideal choice for industrial, HVAC, agricultural, and smart building applications, where reliable and continuous pressure monitoring is essential for maintaining optimal operational efficiency.
Wireless Pressure Common Applications
- HVAC System Performance Tracking
- Cleanroom Pressure Control
- Filter Monitoring
- Laboratory and Fume Hood Monitoring
- Hospital Isolation Room Monitoring
- Environmental Airflow Measurement
- Remediation Equipment
LoRaWAN Wireless Sensors Require the Following:
- LoRaWAN gateway (available from Sensocon and 3rd parties) - one gateway is typically capable of handling thousands of sensors within range. Sensocon pre-provisions gateways to plug-and-play status, saving setup time for the user.
- Internet connection (aka "backhaul") - can be simple ethernet, wireless or cellular connection, connecting the gateway to the internet.
- Platform (available from Sensocon, 3rd parties and DIY "Chirpstack") - provides device management, data visualization, alert setup, etc. Typically this is a subscription model based on the number of sensors using the platform. See "Sensograf" for more information on Sensocon`s platform.
- Operating Temperature
- -4° to 149°F (-25° to 65°C)
- Enclosure Rating
- IP 65
- Weight
- 90g
- Wireless Security
- AES-128
- Antenna
- External Antenna
- Battery Life
- 2.5 to 5 years
- Minimum Interval
- 10 minutes
- Wireless Range
- Up to 10 miles*
- Max Receive Sensitivity
- -130dBm
- Wireless Technology
- LoRaWAN Class A
- Frequency Bands
- US915
- Battery Type
- CR123A (x2)
