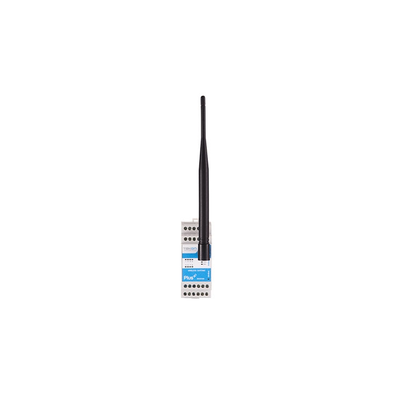

Tekon - Model PLUS WGW420 -Wireless Gateway

SHARE

An easy-to-use system that allows wireless reception and transmission of any process variables that could be transformed into an analogue signal. PLUS wireless system was designed to monitor 4..20 mA / 0..10V signals, providing a secure communication, without cable requirements of a complex wired solution. Conductivity, PH, vibration, humidity, flow, level, pressure or temperature, are some examples of industrial process variables, possible to be monitored and controlled.

  • Scalable network up to 55 PLUS transmitters;
  • Up to 4 Km communication distance (LoS) with 868 MHz and 128-bit AES encryption;
  • Multiple networks with extra gateways and extra long range with several repeaters;
  • Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
  • Modbus RTU communication protocol via RS-485 interface;
  • 8 analog outputs (4..20 mA current loop);
  • Simple and intuitive USB configuration via Tekon Configurator (free software).
  • DIN rail mounting.
