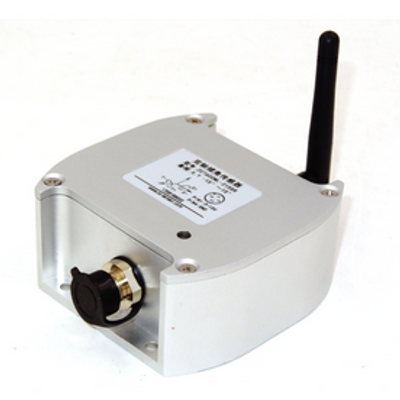

Zhichuan - Model LoRa -ZCT800ML-S215 -Wireless Inclinometer Sensor
ZCT800ML-S215 wireless inclination sensor is a high-precision sensor based on LoRa wireless transmission technology developed and produced by Nagawa Science and Technology. The maximum measurement range of this series of sensors is +15 degrees. It has built-in RTC, which can wake up wirelessly and has low power consumption in dormant state. It is suitable for safety monitoring system of industrial site, building and civil engineering.
- Product Model: ZCT800ML-S215
- Measuring Range: ±15 °
- Output: LoRa
- Power：Voltage(8～30V)
- Measuring Axis: Dual Axis
- Accuracy: 0.001°-0.005°
- Application: Geo/Structural Monitoring
- IP Degree: IP67
Product features: high precision, high resolution, industrial level of LoRa wireless communication, the longest transmission distance up to 5000 meters, a variety of working modes can be selected, typical sleep current 270uA low power consumption, battery power supply can also work for a long time.
Product Applications: Angle Measurement, Horizontal Adjustment, Zero Adjustment Safety Control, Monitoring, Alarm Initial Position Control, Inclination Attitude Recorder.
- Engineering mechanism
- Angle measuring, level adjust, zero adjust
- Security control, monitoring, alarm
- Machine arm, dam, construction bridge angle measuring
- Aim control, bending control
- Original position control, tilt gesture recorder
