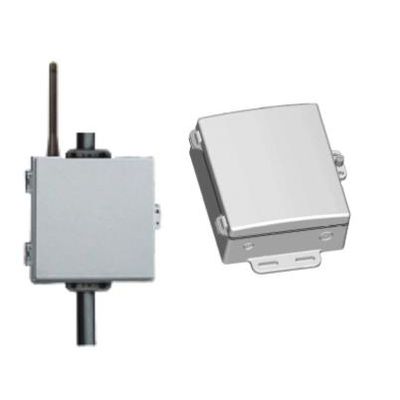

Wireless - Model IWS -Intelligent Wireless SCADA System for Monitoring and Control

A network of IWS nodes can scale to over 1000 nodes and be supported by one or more IWS Hubs. In addition to the basic IWS node supporting up to 4 standard SCADA inputs, several variants are available, offering output controls through either dry relay and 4-20mA current transmitter to facilitate motor or other analog peripheral controls

All IWS nodes can be provided to include local powering options. These include battery (primary or backup), solar and micro generator options such as from induction and vibration sources.

The IWS MS application provides a single point for managing the IWS sensors. Additionally, the IWS MS provides standard interfaces such as Modbus, DNP3 and IEC 60870 to other systems

• Next generation distributed, intelligent wireless SCADA system
• Accepts standard SCADA voltage and current loop sensors
• Reliable & scalable auto mesh
• No wiring needed
• Ultra low power
• Full monitoring, control and back office Support
• Low cost & fast install
• Rugged construction (NEMA6) for all weather conditions

Wide Range of Applications

• Monitor for gas in oil wells
• Irrigation Pumps
• Waste Water management
• Automatic Meter Interface
• Seismic Monitoring
• Solar, Control Board
• HVAC Building Automation System
• Wireless Gas Meters / Data Collector
• Valve Monitor and Activation
• Traffic Control
• Sprinkler Control
• Power Control
• Wireless Street Lighting System

Application & Solution Development

Key technology developments within the wireless industry have provided unparalleled cost effectiveness and flexibility for a multitude of communication applications and solutions, many which are still emerging. Wireless Options are industry experts at the forefront of designing and developing wireless solutions. Some of our recent work includes:

• Rail Applications (security, signaling, internet access)
• Point of sale solution
• Video Analytics for worksite safety and security
• Border security, sensors & surveillance networks
• SCADA networks
  • Flowrate
  • Pressure
  • Temperature
  • Residential & commercial Automatic Meter Reading (AMR)
• Real time tracking & positioning systems & geofencing
  • Vehicles
  • Assets
  • People
• Broadband fixed wireless infrastructure to home and enterprise
• Broadband nomadic and full mobility infrastructure to pedestrian and vehicle traffic

Wireless Options can assist your company sort through the `box` vendors with their "do it all" powerpoint slides and their optimistic data sheets. Our consultants can provide you with an unbiased technology evaluation and selection service for your projects.

Wireless technologies and solutions have revolutionized the way that many of us go about our business. Increasing processor power and memory capabilities have enabled the development of new devices, particularly in mobile application that leverage wireless solutions across most business vertical markets.

Telco

• Incumbent and New Entrants
• Cellular

WISP

• Wireless Internet Service Providers

Municipal Wireless Networks

• ROI/not for profit/digital divide

Transportation & Logistics

• Commuter routes
• Traffic advisory
• ITS for Railway & Roadway

Hospitality and Leisure

• Hotels & Resorts
• Amusement & Holiday Parks
• Stadiums
• Golf Courses

Safety, Security & CCTV

• Border Control
• Police/Fire/Ambulance
• Ports, Airports, Campus

Finance

• ATM
• Security

Utilities and UTelcos

• Gas, Water, Electricity management
• Plant and resource security

Natural Resources:

• Oil, gas & mining
• Infrastructure management

Wireless Options consultants will be pleased to engage with your company and discuss how new technologies have assisted customers in these vertical markets, and how they can now benefit yours.
