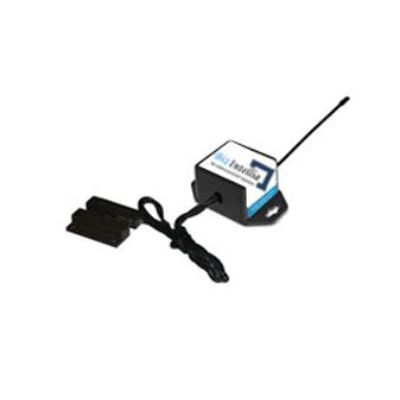

Intellia - Model INT-O-01 -Wireless Open/Closed Sensors

The Intellia Wireless Open/Closed Sensor can be used to detect when a door or window is opened and closed using a magnetic switch.

Most popular related searches

Measuring Parameter Uses magnetic detection switch
Wireless range 1,200+ feet through 12+ walls
Supply voltage 2.0–3.8 VDC *
Current consumption 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode
Operating temperature range -7°C to +60°C (20°F to +140°F)
Operation gap Up to 3/4 inch

Quick Specifications
