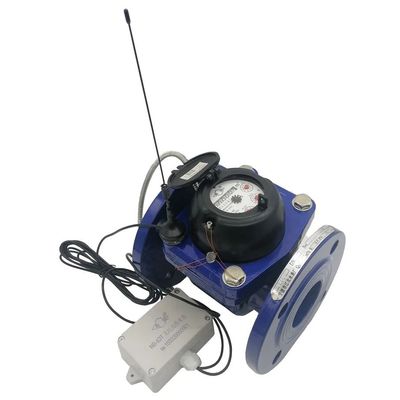

NB Woltman Wireless Remote Reading Water Meter Dry Type LX LCY - 50 W to LXLCY-500W ( 50 mm to 500 mm) is a wireless remote reading NB woltman water meter of low power consumption based on the wireless communication technology of narrowband cellular, with split design (the electronic parts.

• The mechanical part of NB meter is woltman dry type, with the high accuracy, low starting flow rate, easy reading, long lifetime, etc.
• The meter body is iron.
• Meeting EMC/ESD/EMI, the design requirements of electromagnetic compatibility for the electronic products, reaching the industrial leading level.
• The wireless module is separated with the mechanical part, for easy maintainance.
• The electronic parts are separately sealed, and the water proof grade can be IP 68.
• Adopting the advanced technology of data coding and verification, with high communication reliability.
• NB water meter is communicating directly with NB-IOT base station, without collector and concentrator as the reading system.
• Combined by the host computer, building a remote reading management system, to ensure an automatic reading and monitoring.
• Water meter data cycle reporting: it can be set up accordingly to report the data hourly, daily, monthly, including the accumulated water volume, battery capacity, meter status as well as the reporting period.
• Convenient mechanical reading: the reading would not be affected after assembling the NB wireless module.
• Stable signal: with the NB-IOT base station, NB meters set up a network by the core network to make sure a stability of the signal.
• No wiring, and easy installation.
• Advantage of the Narrowband Cellular Technology of NB-IOT.
• Pulse: 100 L/Pulse or 1000 L/Pulse (optional)
• Low power consumption
• Deep coverage of 20 dB and gain (more penetration of a wall than 2G).
• Low cost, multilink (meter reports data directly to base station, without the help of the intermediate equipment.
• Security (adopting cloud management platform to ensure the safety of the clients)
• Reliability of internet (adopting the specific internet to ensure constant and stable operation.
• Reusing the current cellular internet (fast and cheap).
• Global standard cost and roaming.
• Electromechanical conversion error: ΔV≤±1 signal equivalent.

• Item: Parameters
• Frequency: 800MHz,900MHz
• Communication Mode: Duplex, sending and receiving
• Output Power: <23dBm
• Receive Sensitivity: -136dBm
• Emission Current: <250mA
• Receive Current: <80mA
• Sleep Current: ≤4uA
• Visible Distance: >20Km
• Communication Protocol: CoAP
• Working Temperature of Module: -20ºC~+70ºC
• Battery Mode and Capacity: ER26500;8500mAh
• Battery Lifetime: Reporting Once Daily :about 6 years

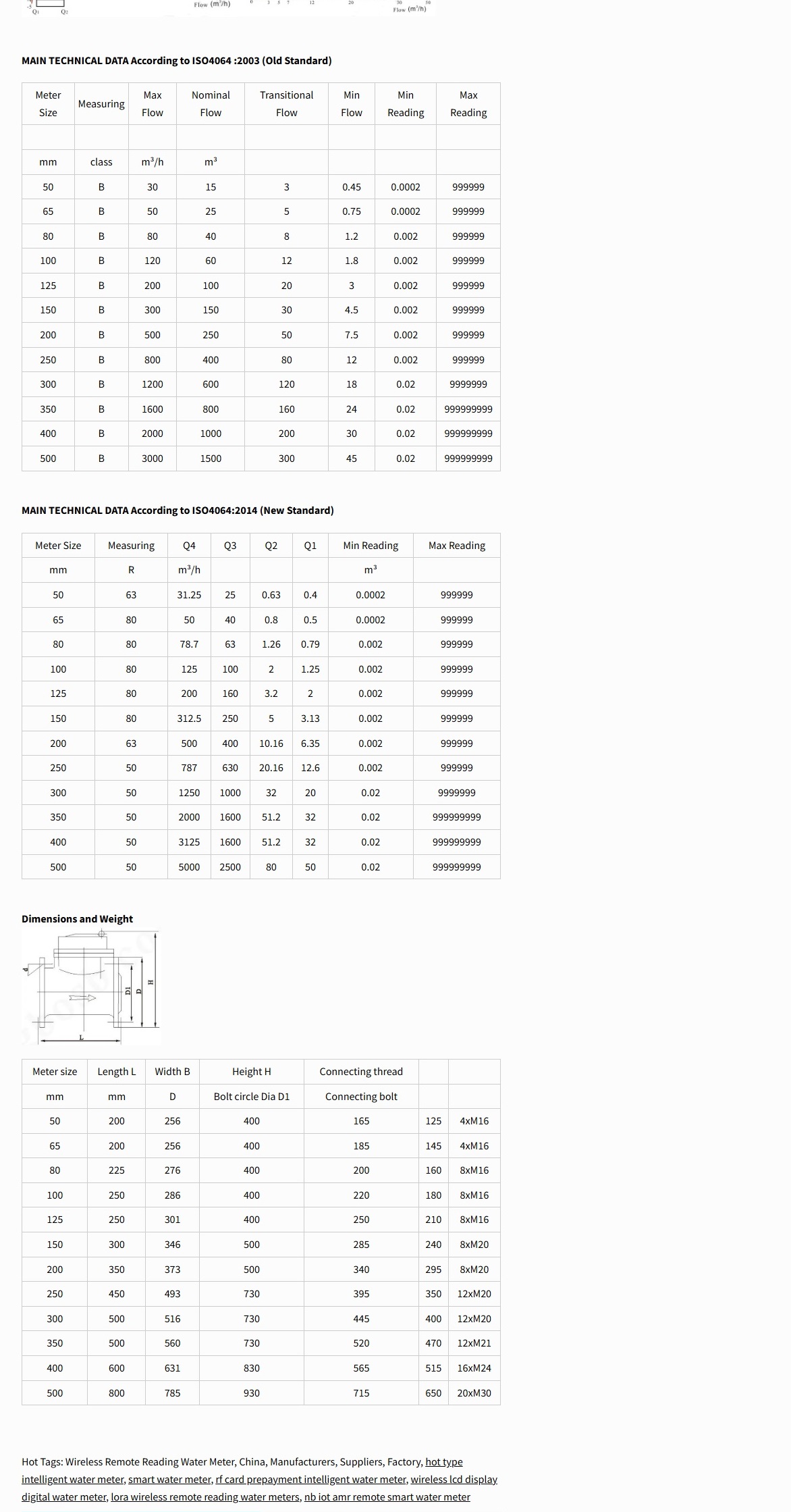

Standard Compliance

Technical data conforms to ISO 4064 Class B, Class C, R80, R100, R125 or R160 standard for horizontal installation.

Working Condition:

• Water temperature:≤50ºC for cold water meter; ≤90ºC for hot water meter
• Humility: 0~95%RH
• Working Pressure: ≤1.0 Mpa.
• Pressure Loss: ≤0.063Mpa.
• Environment Class: B (installed inside).
• Electromagnetic class: E1 (residential, commercial and ligh indurical).
• Water Proof Grade: IP 68.

Installation requirements

• The meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.
• Pipeline must be flushed before installation.
• The meter should be constantly full of water during operation.

Maximum Permissible Error

• In the lower zone from Qmin(Q1) inclusive up to but excluding Qt (Q2) is ±5%.
• In the upper zone from Qt(Q2) inclusive up to and including Qmax(Q4) is ±2%(cold water meter).
• In the upper zone from Qt(Q2) inclusive up to and including Qmax (Q4) is ±3% (hot water meter).
