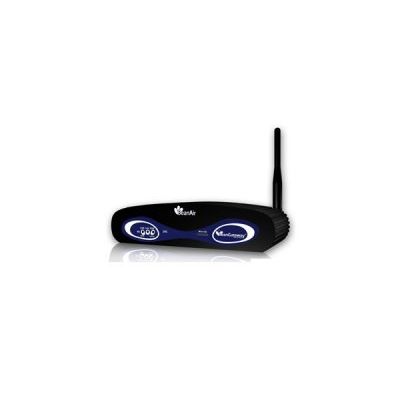

BeanGateway - Model Ethernet Indoor -Wireless sensor network coordinator, Ethernet Interface (indoor version)

SHARE
The BeanGateway® Ethernet is used to build and manage Beanair® wireless sensor network. It can manage queues for every network element (BeanDevice®). As a gateway, it controls the external access to the network through a highly secured authentication procedure. It supports the conversion of data exchanged, compression and IP connectivity with the network thereby reducing the intelligence required in these platforms, maintenance and therefore the associated cost. The BeanGateway® Ethernet operates with an external power supply (DC 8-28V). An integrated rechargeable battery is used as an UPS battery (uninterruptible power supply). The internal battery provides instantaneous protection from external power supply interruptions, the wireless sensor network & Ethernet LAN activities are maintained during this time. The BeanGateway® Ethernet is also equipped with various communication interfaces with the customers IT infrastructure (RS232, Ethernet - TCP / IP / UDP / DHCP / DNS).
Most popular related searches
remote sensor
sensor data
telemetry data
remote monitoring
SCADA software
transmission data
telemetry power
telemetry
SCADA
interface monitoring

The BeanGateway Ethernet operates with an external power supply (DC 8-28V). An integrated rechargeable battery is used as an UPS battery (uninterruptible power supply). The internal battery provides instantaneous protection from external power supply interruptions, the wireless sensor network & Ethernet LAN activities are maintained during this time.

The BeanGateway Ethernet is also equipped with various communication interfaces with the customers IT infrastructure (RS232, Ethernet - TCP / IP / UDP / DHCP / DNS).

It offers the following features:

  • Design, configuration and supervision of the entire Wireless sensors network.
  • Data Organization from the various sensors.
  • Data Transmission to the BeanScape® through an Ethernet interface
  • Backing up wireless sensors network mapping.
  • Information processing continuously even during a power outage.
  • Network measurements synchronization for operation in low power (Telemetry Mode)
  • Data recording on Micro-SD card (option)
  • Builds and manages a Wireless Sensor Network (WSN) designed by BeanAir®
  • Wireless protocol stack : IEEE 802.15.4
  • Link protocol with a server: TCP/IP/UDP/DNS/DHCP
  • Maximum Radio range: 1 km (L.O.S.)
  • Embedded WSN Diagnostic tool
  • Advanced UPS (Uninterruptible power supply)
  • WSN mapping & context is stored on embedded flash
  • « Plug & Play » installation : no knowledge regarding wireless network is necessary
  • Embedded files system for logging all the wireless sensors measurement (backup on MicroSD®)
  • Integrated Lithium-Ion battery charger with high-precision battery monitoring
  • Standard interface with our WSN Scada supervision Software BeanScape®
