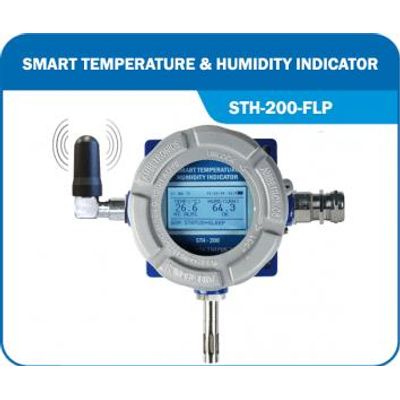

Wireless Temperature Humidity Indicators:-
The Wireless Temperature Humidity Indicators STH-200-Series along with the local receiver unit called as Wireless Control Unit WCU-100, are one of the recent technologically upgraded products which work through GSM/GPRS systems and can easily interface with Temperature and Humidity sensors. They eliminate the use of physical cables that were required for signal transfer between the conventional indicators & multi-channel monitors or data loggers. The wireless data communication features integrated within these devices, use the constantly evolving technologies related to the Internet of Things – IoT category. These devices can be easily operated using a Battery supply or through Solar Panel supply or 24VDC SMPS or 5V, 2A Adapter from AC mains.
Parameters highlighted by these devices are –
- Battery percentage
- Status of the device
- Fault condition
- GSM network status
- Sensor readings
- They are easy to use and work efficiently
SENSOR:
- Semiconductor type Temperature sensor & capacitive type Humidity sensor
RANGE:
- Temperature : – 20°C to 60°C
- Humidity : 0% to 100%RH non-condensing
ACCURACY:
- Temperature : ± 0.5°C
- Humidity : ± 2% RH
DISPLAY RESOLUTION:
- Display Resolution: 0.1 for both Temp. & Humidity
ENVIRONMENTAL SPECIFICATION:
- Operating Temp. : -15°C to 50°C
- Storage Temp. : -20°C to 60°C
- Storage Humidity : 10 to 70% RH (non-condensing environment)
HOUSING FOR WIRELESS DETECTORS:
- Protection class : IP-65 for GAS Gr. IIC CMRI Approved
- Cabinet Material : Cast Aluminium, LM-6
- Cable Entry : Double Compression Cable Gland (Ex-Proof) M20 x 1.5P
- Mounting : Wall Mounting / Stand Mounting / Pipe Mounting
POWER SUPPLY:
- 24VDC SMPS
- 5V, 2A Adapter
- 7V Rechargeable, Li-ion battery
- Solar Powered Panel.
NETWORK:
- Modem : 2G/4G network compatible
- Antenna : up to 2db
ALERTS AND DATA CONNECTIVITY:
- Modes : SMS
- Alarms : 2 settable alarms, sensor fault, open, over, under
- Healthy Alerts : Daily fixed time notification for status alerts
- Details : Battery status, sensor fault and alarm status
POWER CONSUMPTION:
- Normal Mode : Up to 20mW during detection
- During Data transmission : Up to 5W
DIMENSIONS:
- 215mm (W) x 190mm (H) x 125mm(D) (with one gland)
- 261mm (W) x 190mm (H) x125mm (D) (with two glands)
- Weight:
- Display GSM unit : Approx 2.6 kg
- Battery pack unit : Approx 5 kg
