SenSpot - Wireless Tilt/Inclination Sensors

Also, Resensys`s medium-resolution tilt SenSpot™ sensors (MRT) can be used for monitoring of bridge bearings and expansion joints.
‍
SenSpot™ uses Resensys’s proprietary sensing, scheduling and ultra-low power synchronization technology. SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance during its entire service life. Tilt/Inclination SenSpot™ is A breakthrough tool for precise monitoring of tilt, inclination, settling, bending, deformation, and deflection. Using Resensys’s high precision tilt SenSpot™ sensors, movement, settling, deformation and abnormal tilting of bridge piers are detected at an early stage, before such issues become major problems or lead to safety compromise and/or road closure. High precision tilt data helps calculate vertical/horizontal displacement of piers, pylons and spans.

10+ Years Battery Life

• without battery replacement

High Precision

• Narrow Range HRT: ≤0.0003° (5.2µrad)
• Mid-Range HRT: ≤0.003° (52µrad)
• MRT: 0.01° (0.2mrad)

Easy Installation

• self-adhesive(e.g. steel)/
• flange-mount(e.g. concrete)

Long Wireless Range

• 1 km free space

Quick Testing Available

• easy to reuse in other places

Wide Working Temperature

• -40 to +65°C (-40 °F to +150°F)

• Monitoring deflection, bending, settling of piers, abutments at high precision (resolution 0.00016 degree or 0.5 arc seconds)
• Monitoring vertical/ horizontal displacement in spans, pylons, piers using analytical model
• Detecting change in tilt caused by settling, deformation, or permanent change in loading
• Detecting any over-tilting or unhealthy change in tilt that may affect overall safety of the structure

• Lightweight: about 180 g (6.3 oz.)
• Long lifetime: minimum expected life without battery replacement 10 years
• Easy mounting:
• Self-adhesive, no drilling is required (e.g. steel)
• Flange-mount, drilling is required (e.g. concrete)
• Quick installation, 1-2 minutes
• • High accuracy:
• Narrow Range HRT: ≤0.0003°
• Mid-Range MRT: ≤0.001°
• Regular tilt : 0.1°
• Wide working temperature: -40 to +65°C (-40 °F to +150°F)
• Long communication range: 1.0km free space

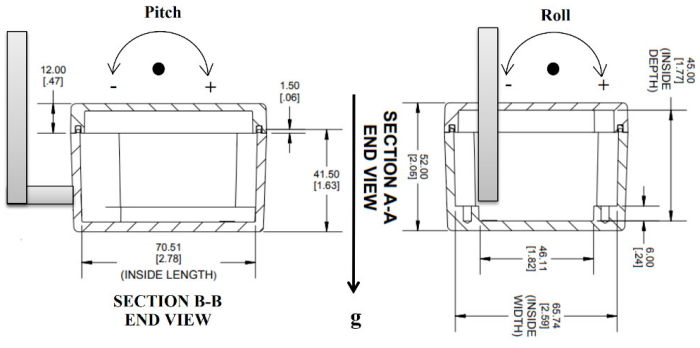

• Size:
• Wireless transmitter: 79.6mm (3.13”) x 74.6mm(2.94") x 52mm x (2.05”)
• Assembly Dimension: 120.8mm (4.76”) x 96.6mm (3.8”) x 149.9mm (5.9”)
• Complementary data collected: temperature, battery voltage, etc.
