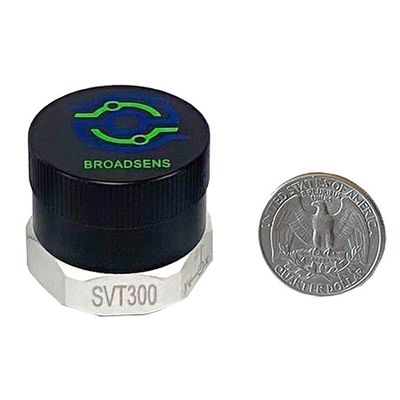

Broadsens - Model SVT300-A -Wireless Vibration Sensor for Predictive Maintenance
SVT200-A, SVT300-A and SVT400-A wireless vibration sensors are the best to be used for predictive maintenance and machine condition monitoring. They have many advanced features such as real-time data acquisition, raw acceleration data transfer and real-time data visualization, advanced filtering and FFT analysis. The sensors can continuously take 3-axes acceleration data in real-time at 50Hz for more than half a year non-stop, which make them the best wireless vibration sensors in the industry. SVT-A series wireless vibration sensors can be divided into more than 3,000 groups, and the sensors in the same group can be synchronized to take data. SVT200-A has the highest vibration sensitivity, SVT300-A covers the common used acceleration ranges from +/-2g up to +/-16g with excellent signal to noise ratio, and SVT400-A has a high acceleration range up to +/-64g.
They all offer multiple data acquisition modes such as real-time mode, batch-mode, single DAQ mode, multi DAQ mode and live FFT mode. The sampling rates are adjustable from 50Hz up to 25.6kHz. Broadsens wireless vibration sensors have adjustable F-MAX range from DC up to 10kHz.
Broadsens wireless vibration sensors require to be used with Broadsens`s wireless gateway. The wireless gateway comes with advanced vibration analysis software BroadVibra. SVT-A series sensors have the default package of single M6 mounting hole. They can also use the two-screw mounting package for SVT-V series wireless vibration sensors
Acceleration range: +/-2g, +/-4g, +/- 8g, +/-16g adjustable
Acceleration sampling rates: 50Hz, 200Hz, 400Hz, 800Hz, 1.6kHz, 3.2kHz, 12.8kHz, 25.6kHz adjustable
Acceleration resolution: 16 bit
Acceleration noise level: 0.7mg RMS; 130ug/vHz density
Temperature measurement range: -40 - 125 degree C
Temperature accuracy: +/- 0.3 degree C, no calibration required
Temperature Measurement interval: Every 5 seconds when active with acceleration measurement
Power consumption: Idle: 2.2uA; DAQ & transmission: <200uA (tested at 50Hz, real-time mode)
Power supply: Replaceable 14250 battery, 1200mA capacity, intrinsic safe. Lasts up to 5 years (depending on usage)
Wireless: 2.4GHz; more than 300m/900ft distance in open space. FCC approved
Size: Diameter: 34mm/1.34in; Height: 31mm/1.22in
Base metal and total Weight: Hardened aluminum alloy 6061 base: 53g/1.87oz; stainless steel base: 100 g/3.53oz. battery included
Mounting method: Magnet mount; epoxy; mounting pad (with M6 screw); stud mount (M8 to M6)
Environment: Working temperature: -55-85 degree C. Water proof: IP68
Explosive atmosphere: Intrinsic safe. Ex ia IIC T4 Ga
