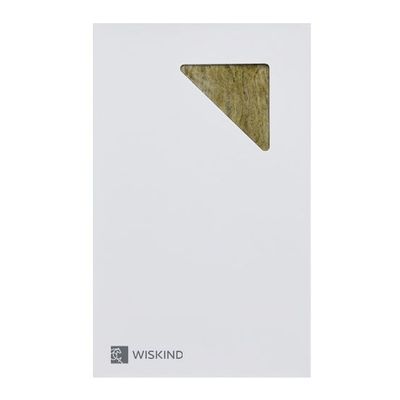

Wiskind - Four Sides Frame Rockwool Cleanroom Sandwich Wall Panel
The modular sandwich wall panel system is made of aluminum profiles,various surface steel,factory prefabrication,on-site splicing,module installation is convenient and fast,mainly used in operating cleanroom.
Most popular related searches
cleanroom sandwich panel
cleanroom wall panel
cleanroom panel
cleanroom wall
cleanroom
pharmaceutical cleanroom
cleanroom system
cleanroom door
noise control
cleanroom product
- Lead Time: 2-7day
- Width: 980mm,1180mm
- Max Length: 9000mm
- Wall Thickness: 50mm
- Steel Facer Thickness: 0.4-0.8mm
- Core Materials: Rockwool
- Outer Plate Material: PPGI
- Coating: PE,PVDF,HDP
- Frame Thickness: 0.6/0.8mm
- Applications : Pharmaceutical Cleanroom, Electronic Cleanroom, Food Cleanroom, etc.
- Product Name: Customized Cleanroom Sandwich Wall Panel for Pharmaceutical with CE
- Width: 980mm,1180mm
- Max Length: Wall panel 9000mm,Celing panel 3500mm
- Wall Thickness: 50mm,75mm,100mm
- Steel Facer Thickness: 0.4-0.8mm
- Outer Plate Material: PPGI,Al-mg-Mn Alloy Steel,SS Steel,Ti-Zn Steel,VCM,HygiSteel™
- Coating: PE,PVDF,HDP
- Core Material: Rock Wool,Magnesium Board,Paper Honey Comb,Aluminium Honey Comb,Plaster,EPS,etc.
- Frame Thickness: 0.6-0.8mm
- Application: Pharmaceutical Cleanroom,Electronic Cleanroom,Food Cleanroom,etc.
- Sandwich wall panels are made of aluminum profiles, modular installation, convenient and quick, non-standard can be customized.
- It is suitable for different environments and provides a variety of core materials with the characteristics of fire resistance, corrosion resistance, noise reduction, and moisture resistance.
- Wiskind provides 6 different panels to provide customers with more services. In the food industry, due to frequent cleaning and disinfection, wall panels need corrosion resistance, so we recommend stainless steel cleanroom sandwich panels.
- The reserved hole reinforcement and the pipeline box have been pre-assembled into the panel in the factory, which effectively reduces the secondary pollution during use, especially in the operating room.
- The sandwich cleanroom panel can be installed flush with the cleanroom door to ensure the cleanroom cleanliness level.
