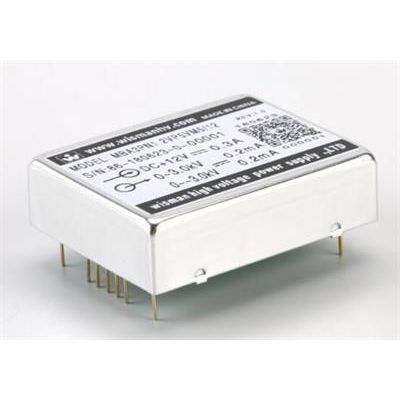

Wisman - Model MBA -Double Module
The MBA serise ie a regulated, versatile,modular HV power supply used in a wide variety of applications including mass spectrometry and Electron Microcopes.From the OEM to the laboratory,they are an excellent choice when you require a highiy stable output.Output can be controlled using either an external control voltage or external variable resistor.With a diverse range of models up to 3KV/4W,you will find something for nearly every requirement.
Most popular related searches
ion mobility spectrometry
mass spectrometry
gamma geiger counter
radiation counter
flow cytometry
geiger counter
spectrometry
mobile leak detection system
cytometry
electrophoresis
- APD(Avalanche Photo Diode)
- Electron Multiplier
- Hibrid Photo Detector
- Bar Code Scanners
- Bomb Detectors
- Cellular Electrophoresis
- Detectors
- E-chuck(Electrostatic Chuck)
- ESD(Electrostatic Discharge Testing)
- Flow cytometry
- FPD(Flat Panel Ditector)
- Gamma Cameras
- Geiger Counter
- GM Tubes(Geiger Mueller Tubes)
- Hi Pot Testing
- Immunocytology
- Ion Mobility Spectrometry(IMS)
- Ionizers
- Leak Detector
- PMT,MM,radiation counter
- Electron Beam/Ion Beam
- Mass spectrometry
- PhotoMultiplier Tubes
- Scintillators
- Electron Guns
- Ion Guns
- Nuclear Instruments
- Electrostatic lenses
- Spectroscopy
- Microchannel Plates
- Input Voltage:
- +12Vdc±1V. Other input voltages available on special order.
- Input Current:
- Less than 0.3A at full output.
- Output Voltage:
- Continuously adjustable over entire output range. Available
- in either positive or negative output polarity. See table for
- voltage ranges.
- Output Voltage Control: Controlled by either:
- 1) Internal ten-turn potentiometer
- 2) External potentiometer 5k to 100k (set internal pot. to max.)
- 3) Remote differential voltage programming (0 to +10V gives
- 0 to full output).
- Accuracy 0.1%.
- Remote Control:
- Remote programming Common Mode Range: 0VDC to +10VDC
- Line Regulation:
- 0.001% for input change of 10%.
- Load Regulation:
- 0.001% for 0 to full load change(at maximum voltage).
- Temperature Coefficient:Better than 25ppm/°C.
- Stability:
- <0.01%/hr at constant operating conditions after 1 hour warm-up.
- Output Voltage and Current Monitors:
- Voltage: 0 to +10V represents zero to full output ±1%.
- Temperature:
- Operating: 0°C to +50°C.
- Storage: -35°C to +85°C.
- Connectors:
- Input: 6 OR 8 pin connector (mating connector supplied).
- Output: Output voltage 0.3-3kV, pin
- Dimensions:
- D45mm X W35mm X H12mm
