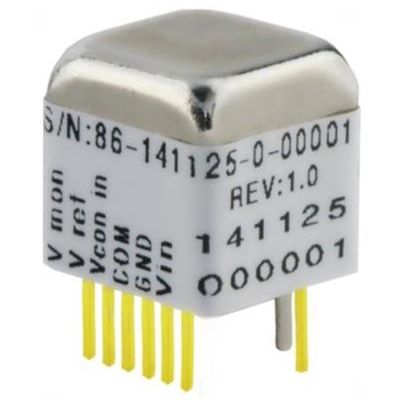

Wisman - Model MM -Micro Module
The MM serise ie a regulated, versatile,modular high voltage power supply used in a wide variety of applications including MAss spectrometry and Electron Microcopes.From the OEM to the laboratory,they are an excellent choice when you require a highiy stable output.Output can be controlled using either an external control voltage or external variable resistor.With a diverse range of models up to 2KV/1W,you will find something for nearly every requirement.
Most popular related searches
ion mobility spectrometry
mass spectrometry
gamma geiger counter
radiation counter
flow cytometry
research instrument
geiger counter
spectrometry
mobile leak detection system
flow testing
- APD(Avalanche Photo Diode)
- Electron Multiplier
- Hibrid Photo Detector
- Bar Code Scanners
- Bomb Detectors
- Cellular Electrophoresis
- Detectors
- E-chuck(Electrostatic Chuck)
- ESD(Electrostatic Discharge Testing)
- Flow cytometry
- FPD(Flat Panel Ditector)
- Gamma Cameras
- Geiger Counter
- GM Tubes(Geiger Mueller Tubes)
- Hi Pot Testing
- Immunocytology
- Ion Mobility Spectrometry(IMS)
- Ionizers
- Leak Detector
- PMT,MM,radiation counter
- Electron Beam/Ion Beam
- Mass spectrometry
- PhotoMultiplier Tubes
- Scintillators
- Electron Guns
- Ion Guns
- Nuclear Instruments
- Electrostatic lenses
- Spectroscopy
- Microchannel Plates
- SUMMRY
- Input Voltage :
- +5±0.5V(option:-12:12V±1V,-15:15V±1V,-24：24V±1V)
- Input Current:
- with no load:5mA
- with full load:50mA
- Variable Output Voltage Range:
- 50V,100V,200V,300V,
- Output power:0.1W.
- Regulation:
- Line Regulation :±0.01%
- Load Regulation :±0.01%
- Stability: 0.01%/hour 0.03%/8hour.
- Ripple / Noise (p-p):
- 5mV(maximum voltage and maximum current)
- Output Voltage Control:
- By external controlling voltage (0 V to +5 V)
- Controlling Voltage Input Impedance:5KΩ
- Reference Voltage Output:
- +5.0 (with 50 kΩ external potentiometer)
- Output Voltage Rise Time : 50ms(0-99%)
- Temperature Coefficient: 10ppm/℃
- Protective Functions:
- Units protected against reversed power input, reversed / essivecontrollingvoltage input, continuous overloading / short circuit in output
- Environmental:
- Temperature Range:
- Operating: -40°C to 50°C case temperature
- Storage: -55°C to 85°C, non operational
- Humidity:
- 10% to 90%, non-condensing.
- Dimensions:
- 0.43”L X 0.43” W X 0.43”H
- (11mm X 11mm X 11mm)
- Weight:
- 0.7oz. (20g), typical
- Information on wisman and their wide range of high voltage products is available by calling +86-29-3369-3480, or by visiting their website: http://www.wismanhv.com
- Wisman High Voltage power supply is the world`s leading provider of custom designed and standard AC-DC and DC-DC high voltage power converters for: medical, industrial,analytical, and security applications; semiconductor manufacturing; scientific instrumentation; and power feed systems for undersea cables. wisman is headquartered in the china. that provide design, manufacturing and service to our customers throughout the world.
- Wisman high voltage is an ISO9001:2008 registered company
