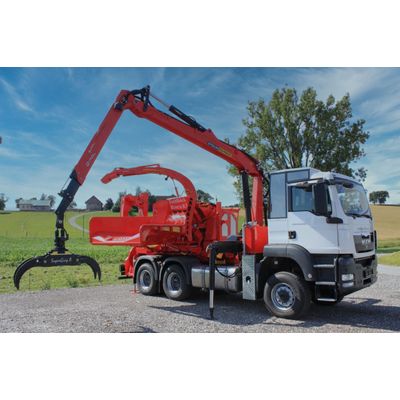

Biber - Model 83 Truck -Wood Chipper for Drive Via Truck Engine

Perfect chipping

The proven Eschlböck chipping rotor is designed to be easy to pull and particularly power-saving. With chopping knives or blades, you get exact fine chopped material and coarse chopped material, depending on the knife setting and screen size

Safe on the road

The compact design without excess width and with standard weight guarantees easy road approval for a good ride troughout Europe.

Wear-resistant blower

The 1,55 m Ø blower, lined with high-strength wear surfaces, ensures gentle discharge and enables coarse chippings with low fines content.

Precise chipping jet

The 5,2 m high discharge is ideal for direct filling of high trailers.

It is hydraulically height-adjustable within a range of 2,6 m to 5,2 m. With the overflow flap lumpy wood chips placed with pinpoint accuracy.

• Specifications: 83 Truck
• Power source: HGV-Engine
• Chassis: HGV 6x6
• Max. wood diameter: 60 cm
• Max. woodØ with blade system (hard wood): 45 cm
• In-feed width: 98 cm
• No. of knives or blade system: 8 or 16
• Chain belt in-feed length to roller: 2,05 m
• Power required via PTO shaft: -
• Rotational speed of PTO shaft:
• Power requirement from engine: HGV 397 kW
• Hydraulic swinging drawbar: -
• Turntable: -
• Loading crane: ●
• Spaltbiber: ○
• Transport dimensions l x w x h (m)*: 8,3 x 2,5 x 4,0
• Weight app. (kg) *: 24.00
