Youyi - Worm Gear Fully Welded Ball Valve
Worm gear fully welded ball valve, there will be no external leakage, etc., because the valve seat is composed of carbonized Teflon seal ring and coffee spring, it has strong adaptability to pressure and temperature changes, and it will not occur within the marked pressure and temperature range. Any leaks. The processing of the sphere is tracked and detected by an advanced computer detector, and the processing precision of the sphere is high. Since the valve body material is the same as the pipe material, there will be uneven stress, no deformation due to earthquakes and vehicles passing the ground, and the pipe is resistant to aging. The body of the seal ring is made of PTFE with a content of 20% C (carbon) to ensure no leakage (0%).
Worm Gear Fully Welded Ball Valve

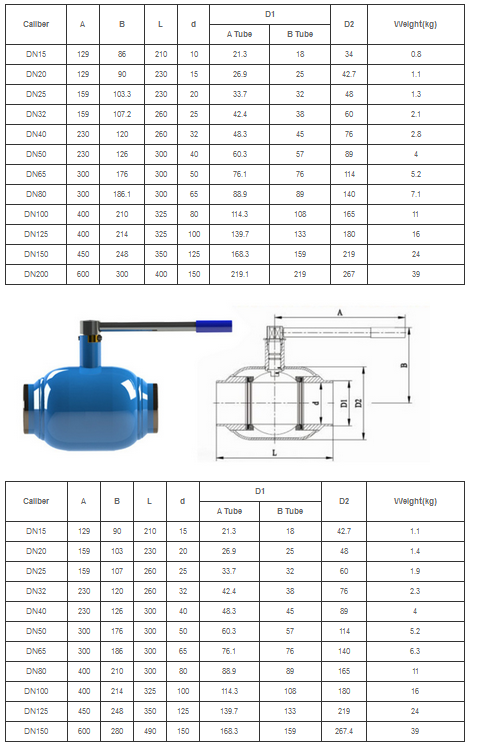

Turbine Fully Welded Ball Valve Product Parameters:
- Connection method: welding, butt welding.
- Pressure rating: 150~600LB, 1.6MPa~ 4.0MPa.
- Product specifications: 1/2" ~ 40", DN15 ~ 1000mm
- Product material: WCB, A105, F11, F22, F304, F316, CF8, CF8M, WCC or according to customer requirements.
- Applicable temperature: -29?≤t≤150? (the temperature is different from the material of the valve body and the sealing surface).
- Applicable media: water, oil, natural gas, acid and alkali media, etc.
- Drive mode: electric, manual, worm gear drive, gear drive, etc.
Worm Gear Fully Welded Ball Valve Use
City gas: gas export pipelines, main trunk lines and various branch supply pipelines, etc.
Centralized heating: output pipelines, main lines, and branch lines of large heating equipment.
Heat exchanger: the pipeline and each circuit are opened and closed.
Steel plant: various fluid pipelines, exhaust gas selective discharge pipelines, gas and heat supply pipelines, fuel supply pipelines.
Various industrial equipment: various heat treatment pipelines, various industrial gas and thermal pipelines.
