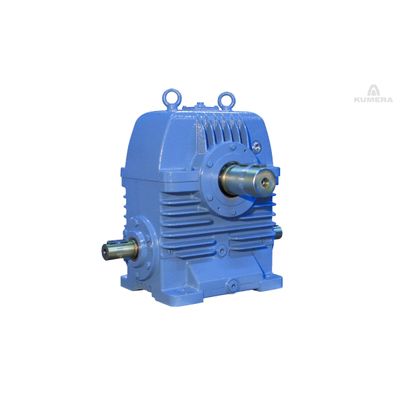

Kumera Covera - Worm Gearboxes
The Covera worm gearbox series is designed especially for non-continuous operation. Thanks to its Concave – Convex tooth profile it can take higher peakloads than conventional profiled worm gears. The reason Covera tooth profile is stronger than a conventional worm tooth profile is that the surface pressure is spread on large area causing a significant surface pressure reduction. The noise level is substantially lower than that of vertical or bevel gears.
The ratio scale from 5:1 to 3550:1 gives a wide selection of exact ratio needs. Whether you need a worm gearbox to jacking systems, bark removal processes, mixer or, for example, a feeder, you can find a suitable Covera gearbox from our product portfolio. Covera gearboxes are made to meet even the roughest requirements.
Covera-series is perfect choice for:
- Wood handling
- Waste water and chemical industry
- Mining and mineral industry
- Aluminium potlines
- Nominal torque rating 1 – 35 kNm
- Nominal power rating up to 175 kW
- Gear ratios from 5:1 to 3550:1 (Catalogue gear ratios)
- Shaft center distances from 63 mm to 400 mm
- Bark removers
- Feeders
- Mixers
- Waste water handling
- Conveyors
- Cranes
- Rollers
- Escalators
- Anode jacking systems
- High load carrying capacity
- Large ratio scale
- Several gearbox types to choose from
- Low noise level
- Several mounting positions
