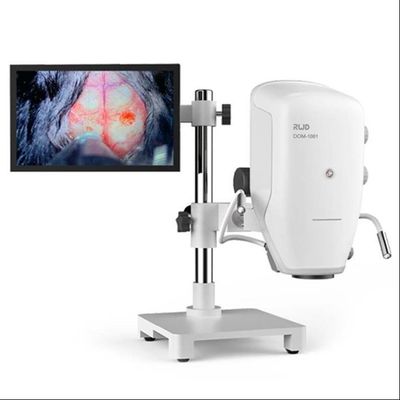

WPI - Model DOM-1001 -16MP High-End Integrated Digital Microscope
The DOM-1001 is a 16MP high-end integrated digital microscope, and enables real time record, collect, and share high-definition 4K images and videos(1080P). Multiple people can view samples simultaneously on the included 11.6-inch display, supporting the whole process of taking pictures and videos it is widely applied in Life science: animal surgery, tumor, morphological observation, embryologic histology, education, Industry & Manufacturing: electronics& semiconductor, metals, medical, new energy, etc.
Most popular related searches
- Perfect image quality
- Compatible with stereotaxic frames
- High stability, easy to use and move
- 16MP CMOS camera:The camera comes with fast automatic one-key exposure, supports exposure compensation, and can quickly shoot samples that contain areas of sharp bright and dark contrast.
- Auto/manual one-button white balance and RGB adjustable enables real colors.
- FHD resolution real-time images: The 60fps CMOS camera provides recording 4K pictures and 1080p videos.
- The 7:1 zoom ratio (with switchable locking aperture) able to realize rapid magnification.
- Ergonomic design : Foot pedal to adjust focal length, 180 mm working distance.
- Resolution: 1920×1080 pixels
- Sensor grade: Panasonic 1600W 1/2.33″CMOS
- Pixel size: 1.335μm x 1.335μm
- Sensor size: 6.18mm x 4.65mm
- magnification: 18-100x (with optional 27-inch monitor)
- Zoom Ratio: 7:1
- Working distance: 180mm
- Depth of field:
- 6.7 mm (Highest magnification), 0.41 mm (Lowest magnification)
