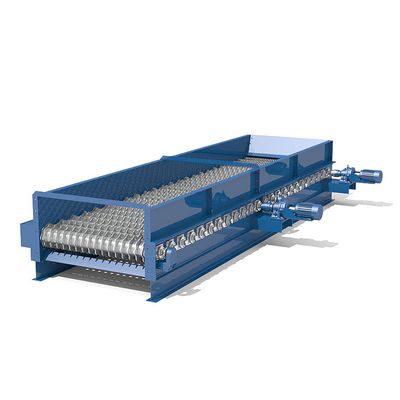

WSM - Disc Screens
Full Range of Sizes & Configurations with Capacities Up to 600 Tons Per Hour.
Most popular related searches
- Highly efficient and cost-effective for high volume coarse screening applications
- Increase throughput and reduce Grinder maintenance by removing overs, chunks, splinters, and trash
- Low speed, smooth operation eliminates the need for special support structures or foundations
- Agitation action of discs improves screening efficiency
- Modular side sheets allow for quick and easy maintenance access
- Central lubrication station makes it easy to service
- Solid through, large diameter shaft assemblies contribute to a long operating life
WSM`s Unique Mulch Thickness Screen
- A great new tool for high volume mulch screening!
- Delivering consistently sized finished mulch by rejecting over-thick and chunky materials from your mulch product thanks to tight spacing between the discs
- Can be configured with our unique waterfall arrangement to help agitate and turn material, further increasing screening efficiency
WSM`S DISC SCREENS ARE AN EFFICIENT AND COST EFFECTIVE CHOICE FOR HIGH VOLUME, COARSE SCREENING APPLICATIONS.
- WSM Disc Screens operate by accepting material from an infeed device
- As material slides down the chute, smaller material (“fines”) fall through the disc openings
- Later material (“overs”) is transported to the end of the screen and transported to the end of the screen
- “Overs” can be discharged into a Grinder, Hog, Hammermill, No-Knife Re-Sizer, or reject conveyor
MAINTAINING YOUR DISC SCREEN IS STRAIGHTFORWARD THANKS TO SOME THOUGHTFUL DESIGN FEATURES LIKE:
- Centrally located lubrication station
- Rotor design is self-cleaning and low maintenance
- Modular side panels allow for quick maintenance access
- Four bolt, self-aligning flange bearings
CUSTOM SIZES AVAILABLE TO HANDLE SPECIFIC APPLICATIONS. CONTACT US WITH YOUR APPLICATION DETAILS.
- STANDARD WIDTH: 18″, 24″, 30″, 36″, 48″, 60″, 66″, 72″, 84″, 96″, 120″
- STANDARD LENGTH: 4 to 24 rotors assemblies
- Disc Profile: Various disc profiles are available to meet specific application needs
- Orientation Rolls provide tight disc spacing on initial rotors to transition infeed material on to the main screen area
- Anti-jam Control: Detects jam up though current sensing on drive motor. Provides controls to reverse and clear the jam automatically
- Motion Switch: Detects motion and zero speed conditions
- Top Covers: Provides enclosure over to of screen for dust control and safety purposes
