Bigger

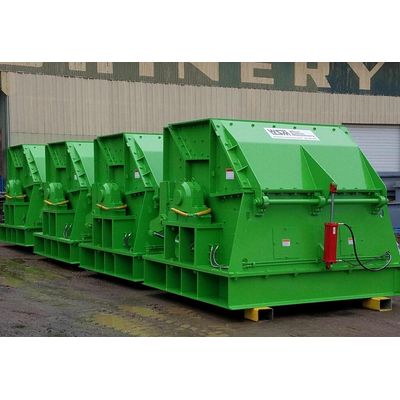

- Eliminate the need for multiple size reduction machines, WSM’s Super Shredder is a single shredding/milling machine for the highest volume applications
- Unique hybrid machine combines the efficiency of a high-speed mill with the durability of a heavy-duty grinder/mill

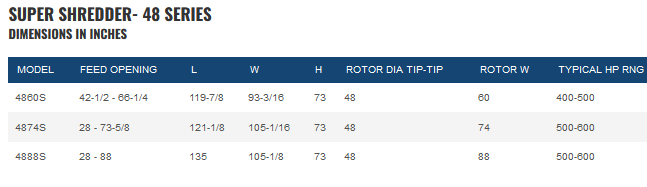

- Massive 48 inch diameter rotor and up to 88 inch rotor length
- Maximum performance thanks to high tip speed, increased screen area, and aggressive milling action
- Process high volumes of pre-processed material to a consistently sized fiber for pellet production, biomass power, co-firing, mulch/bedding and numerous other value-added products
- Drive sized typically range from 400-1000 HP
- Reduce maintenance and operating costs with dual pivoting hydraulic housing for easy internal access
- Extra thick,replaceable interior wear liners and modular sizing screens
- Built for use in 24/7 operations and proven in mill-duty applications
Materials Processed
WSM Shredders provide simple, energy-efficient size reduction
- Ag Residuals
- Bagasse
- Bark
- Biofuel
- Biomass feedstock
- Chips
- Corn stover
- Energy crops
- Grass straw
- Hogged Wood
- in-Woods chips
- Micro chips
- Particleboard furnish
- Pellet feedstock
- Pre-hogged wood
- Pulp chips
- Sawdust
- Shavings
- Sorghum
- Wheat straw
- Wood chips
Sensible Maintenance and Improved AdaptabilityWith the Super Shredder, users can easily change hammer tips and screens to adapt to a variety of different applications.
- Multiple hammer options can be used to optimize performance.
- Change perforated screens to suit changing applications with options from 3/64” to 3” diameter.
- Optional plenum flange in the base allows for connection to air discharge or air-assist system.
Hover over circles to see features of the Vertical Grinder.
