WT Series

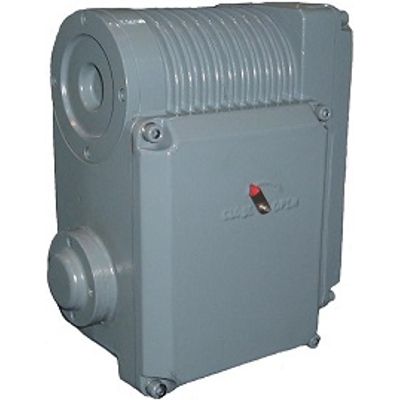

The outlet actuator is attached to the discharge valve for the waste transportation system and is automatically. It is a device that opens and closes a valve. It has a built-in limit switch and torque switch, Manual opening and closing is also possible by operating the manual handle in an emergency. The enclosure is IP-67 with watertight construction. To prevent internal condensation, The space heater of THERMISTOR TYPE is built in.
|
Model |
WT-050A |
|
Waterproof Grade |
IP-67 |
|
Main Power |
AC220V, 60Hz, 1Ph |
|
Control Power |
AC220V, 60Hz, 1Ph |
|
Motor |
200W x 4P x B class (130?), Single phase, BUILT-IN TYPE |
|
Limit Switch |
Open/Close X 1 EA, Silver alloy contact, Rating : 250VAC, 10A |
|
Torque Switch |
Open/Close X 1 EA, Silver alloy contact, Rating : 250VAC, 10A |
|
Rotating Angle |
90° (Max. 105 °) |
|
Terminal Block |
Internal Terminal block 18 pcs (with power terminal) |
|
Space heater |
Thermistor type, 5W, 100~240VAC |
|
Cable Entrances |
PF 3 / 4” x 2EA |
|
Ambient temperature |
-25? ~ 80? |
|
Lubricants |
Grease EP0 |
|
Paint |
Anodizing + Vinyl resin primer + Acrylic urethane paint |
|
Color : MUNSELL NO. 2.5PB5/2 |
