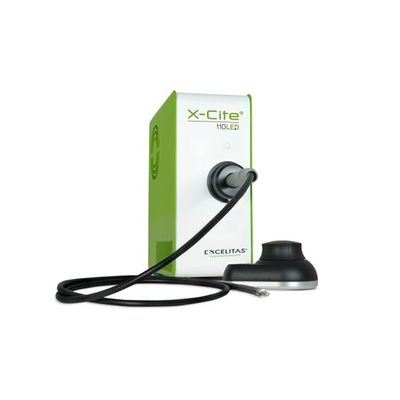

X-Cite - Model 110LED -Broadband Illumination System
The X-Cite 110LED is a compact, white light LED light source for fluorescence imaging applications. Providing excitation for DAPI, GFP, mCherry and Cy5 routine imaging, the X-Cite 110LED offers exceptional field uniformity through liquid light guide delivery. With manual, PC and TTL control, the X-Cite 110LED has LEDs guaranteed for 25,000 hours with no lamps or modules to replace.
Most popular related searches
- LED Technology: Mercury-free, higher efficiency, stability, instant ON/OFF and long lifetime
- White Light Excitation: Excitation of commonly used fluorophores such as DAPI, GFP/FITC, mCherry/Texas Red, and Cy5
- Light Guide Delivery: Flexibility in light delivery as well as unit location
- Multiple Control Options: Simple operation through USB, TTL or speedDIAL
- Small Footprint: Minimal space requirement; less bench top real estate used
- Optimized Thermal Management: Maximum LED output, lifetime, stability and reliability
- X-Cite Coupling Optics (optional): Efficient optical output and uniformity with the highest performing coupling optics available
- Wavelength Range : 360-660 nm
- LED Peaks/FWHM : 385/30 nm, 475/40 nm, 560/80 nm, 640/40 nm
- External Power Supply : Universal input 100-240 VAC, 50/60 Hz
- Power Consumption : 160 W
- LED ON/OFF Response Times : 100 µs TTL / 1 ms USB
- Control Options : TTL compatible – ON/OFF speedDIAL – ON/OFF, 1% intensity increments
- RS-232 commands (SDK available), USB
- I/O Connections
- BNC input : USB (B-Type)
- Dimensions (W x H x D) : 95 mm x 230 mm x 212 mm (3.7" x 9.1" x 8.4")
- Weight : 3 kg (6.6 lbs)
- Certifications : CE, RoHS
- Warranty :
- LEDs – 25,000 hours or 3 years
- All other X-Cite 110LED components – 1 year, parts and labor (excluding LLG)
