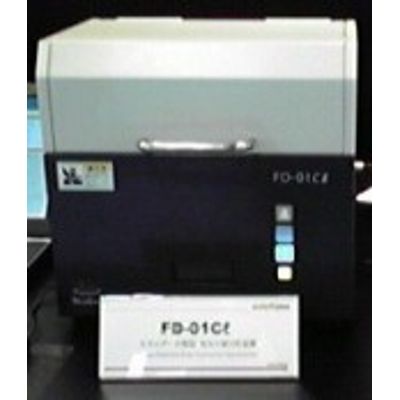

Techno - Model FD-01Cl -X-Ray Fluorescence Analysis Instrument
X-ray fluorescence analysis instrument for management of chlorine concentration in waste. This is an analysis instrument specialized for measurement of chlorine concentration important for quality control of waste or recycled materials. Because it was specialized for chlorine, the initial cost has been reduced. The real-time administration could be realized at the field.
Most popular related searches
XRF analysis
XRF instrument
XRF spectrometer
X-ray analysis
semiconductor detector
fluorescence spectrometer
materials recycling
chlorination
waste materials recycling
sample pretreatment
- Newly-developed semiconductor detector that requires no liquid nitrogen is equipped with.
- New optical system that made rapid and highly-sensitive measurement possible is equipped with.
- A large chamber corresponding to the various form of samples is equipped.
- Complicated pretreatment for samples is unnecessary.
- Energy saving, compact design.
- measurement principle : X-ray fluorescence spectromet
- peak assignment detection range : 17Cl～24Cr
- measuring object : solid, liquid, powder
- X-ray tube : W (tungsten) target
- voltage : 20kV
- current : 0.1mA
- cooling : air cooling (with fan)
- irradiation area : 8mmφ
- filter : one type
- detector type : SSD(silicon drift detector)
- liquid nitrogen : not required
- measurement atmosphere : in air
- safety mechanismm : interlock mechanism
- power requirements : AC100V ± 10%, 0.5A, 50/60Hz
- size : 350 (W) ×300 (D) × 340 (H) mm
- weight : about 25kg
PC Specification
- PC : notebook PC(standard) / desktop PC(option)
- OS : Windows7
Software Specification
- screening : easy operation software
- qualitative analysis : measurement and analysis software
- quantitative analysis : calibration curve method, FP method
- other : result search and tabulated functions
- tabulated functions for report result
