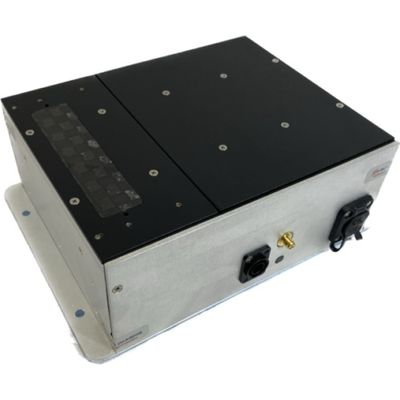

X-Scan Harrier - Model CCD XTI12848 -X-Ray Sensitive Time Delay Integration (TDI) Line-Scan Camera

A compact camera design combines scintillation for conversion of x-ray and gamma-ray photons to visible light, and fiber optics for conveying the visible light to a shielded, off-axis linear imaging diode array. A collection of hardware for interfacing to computers and software including drivers, an intuitive application programming interface (API), example code software, and standard inspection application expedite developments of x-ray scanning systems. Typical applications include PCB inspection, battery inspection, chip counting, continuous weld inspection and other Non-Destructive Testing (NDT) imaging where higher inspection rates and higher quality imaging are required.

TDI (Time Delay Integration) imaging is based on the concept of accumulating multiple line-scans which provides significantly increased responsivity, higher resolution, greater scanning speeds, decreased noise and increased SNRs/CNRs when compared to other technologies, including single-scan Linear Diode Array (LDA) imagers as illustrated.

High speed, resolution & sensitivity
Imaging with off-axis, fiber-optic design
User-select X-ray scintillating material GOS, CsI(Tl), CdWO4, etc.
A selection of lengths:

• • 4 inches (2048 pixels)
• • 9 inches (4608 pixels)
• • 12 inches (6144 pixels)

Highly extended lifetimes
Camera Link (Base configuration) and GigE Vision interfaces
16-bit digitization and data output
100-240-V, 50-60-Hz power
Software development kit (SDK) with application programming interface (API)
