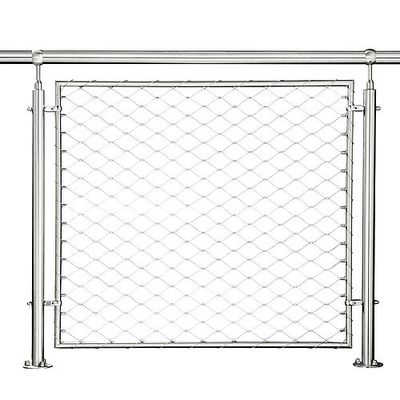

X-TEND - Model XT2 -Railing Infill System

XT2 as a railing infill system consists of X-TEND stainless steel net covered in a frame with 1.5 mm or 2.0 mm stainless steel cables and different mesh sizes, with mesh sizes of 40 to 80 mm being the most commonly used. The frames made of stainless steel with a tube diameter of 21.3 mm and 2 mm wall thickness are manufactured in both a rectangular design and a parallelogram shape for stairs. Usually with a pitch angle of 25 to 35.
