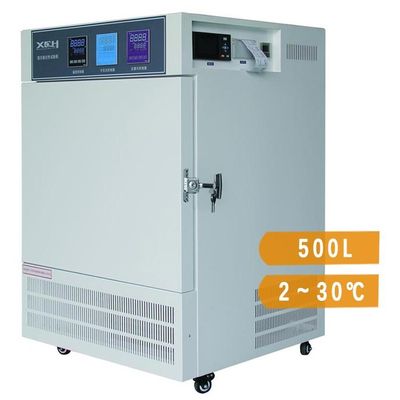

XCH - Model 500LTPS -Photostability Test Chamber
XCH-500LTPS photostability chamber, is a temperature controlled chamber, equipped with visible light and near-ultraviolet lamp tube, Medicine Stability Chamber can independently control the type of light source, and can print and record visible light illumination and near-ultraviolet radiation in real time. Visible light and near-ultraviolet can be directly set, automatically adjusted and precisely controlled.
Most popular related searches
test chamber
photostability chamber
photostability testing
stability test chamber
digital temperature controller
stability chamber
noise control system
data acquisition system
chamber test
ultraviolet lamp
- Light Range: Visible light range: 100 ~ 8000LUX
- Total illumination should not be less than 1.2 x 10^6Lux·hr
- UV range: NUV range: 0.84 ~ 5w/m squared; The near-UV energy is no less than 200w•hr/?
- UV wavelength: NUV wavelength: 320 ~ 400nm;
- Temperature Control: Temperature Fluctuation ≤ ±1.0?,Temperature Deviation ≤ ±2.0?(Same layer)
- Illumination Control: The total illumination is not less than 1.2×106 Lux·hr,Near ultraviolet energy is not less than 200w·hr/m2
- Light Source Design: Top light source design, the sample of different position of shelf has good uniformity of receiving light source irradiation
- Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance
- Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean,the out shell is plastic sprayed steel plate
- Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise.
- Control System: The imported digital display illuminance controller,High control accuracy.
- Safety device: compressor overheat and overpressure overload protection, Fan overheat protection.
- Dual Protection: Equipped with independent overtemperature protection system, can automatically cut off the power supply
- Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard
- Meet a criterion: Meet ICHQ1B?Chinese Pharmacopoeia 2020 edition
- Installed Power: AC220V±10% 50HZ
- Environment temperature: +5~35?
- SMS alarm: Optional.
- No maintenance.No pollution source
- High sensitivity, low annual drift
- High precision
- Safety,with alarm system
