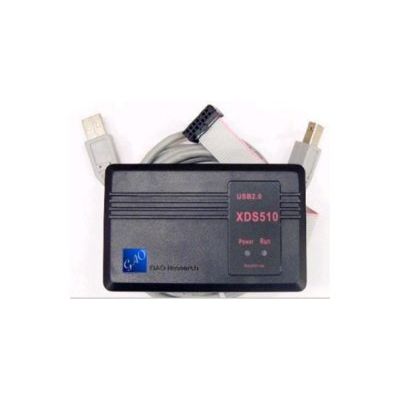

GAOTek - Model B0M00003 -XDS510 USB 2.0 Enhanced TI DSP Emulator
FromGAO TEK Inc.
The XDS510 USB 2.0 Enhanced TI DSP Emulator supports drivers for both CCS3.3 and CCS2.x. It features a compact size, plug-and-play operation, a high operating speed and multi-DSP emulation. The emulator is equipped with a standard high-speed USB 2.0 interface and JTAG emulation interface that saves computer resources. It has a data transfer rate of up to 480 MB/s. TI`s DSPs emulated include: TMS320C2000/3000/5000/6000, C3X/4X/5X/8X, OMAP1510/1610/1710/2420/310/5910.
- Standard high-speed USB 2.0 interface, plug-and-play, compatible with USB1.1 host
- Standardized JTAG emulation interface, saves user`s computer resources
- Compatible with Windows 98/NT/2000/XP
- Drivers for both CCS3.3 and CCS2.x, to support C and Assembler
- Flash programming for F28x/F240x/F24x/F20x
- High emulating speed, supports real time data exchange (RTDX) with data transfer rates of up to 480 MB/s
- Self-regulated to DSP voltage of the target board
- Prevents system from crashing and becoming non-rebootable when the power of target board goes off
- Emulates TI`s TMS320C2000/3000/5000/6000, C3X/4X/5X/8X, OMAP1510/1610/1710/2420/310/5910
- Supports multi-DSP emulation
- Easy to install, stable at high speeds
- One high-quality, shielded USB 2.0 cable
- One CD-ROM with latest driver for CCS3.3 and CCS2.2 (we also have specific drivers for CC3X/4X)
- One USB 2.0 Enhanced TI DSP Emulator
