BOTO - Model BT-E711-1 - Xenon Lamp ...

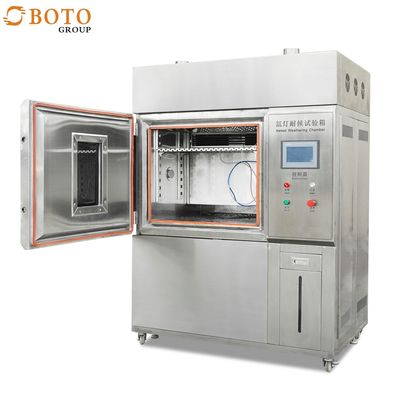

BOTO - Model BT-E711-1 -Xenon Lamp Weather Resistance Aging Test Chamber

Packaging Dimensions: (WxDxH) 1650*1700*2200mm Power supply source: three-phase, 380V±10%, 50Hz (can be appointed) Gross Weight: 450kg HS Code: 8479899990

Most popular related searches

cooling system

heat protection

water protection

digital temperature controller

water cooling

water shortage

water pump

water pump protection

water leak protection

test chamber

Internal Dimension (W*D*H): 800*800*800mm
External Dimension (W*D*H): 1450*1500*2000mm
Inner chamber material: SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material: Stainless steel
Chamber Temperature: 40±3℃
Temperature Uniformity: ≤3℃
Blank panel temperature: 65±3℃
Humidity Range: 50%-90%
Irradiated intensity :0.35±0.02w/m²at 340nm
Xenon lamp power : 6.5KW water-cooled xenon lamp x 1pc
Control system: PLC controller, touch screen
Distance from specimen to arc center: 250~300mm, Effective exposure area 6400cm2
Max. Sample dimension: 200*90mm Thickness<20mm
Filter: Daylight filter
Door seal: Silicone rubber seal
Temperature sensor: PT100 high precision temperature sensor
Air circulation system:Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Cooling ventilator: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
Cooling ventilator: France Tecumseh compressor
Power: AC380V, 50Hz, three phase
Safety Protection: Over heat protection for fan,Over load protection for cooling system,Over pressure protection for cooling system,Over temperature protection,Over heat and over flow protection for water pump,Leakage protection, Water shortage protection,Auto stop after failure warning
