Xinhengtong - Cloth Wire

SHARE

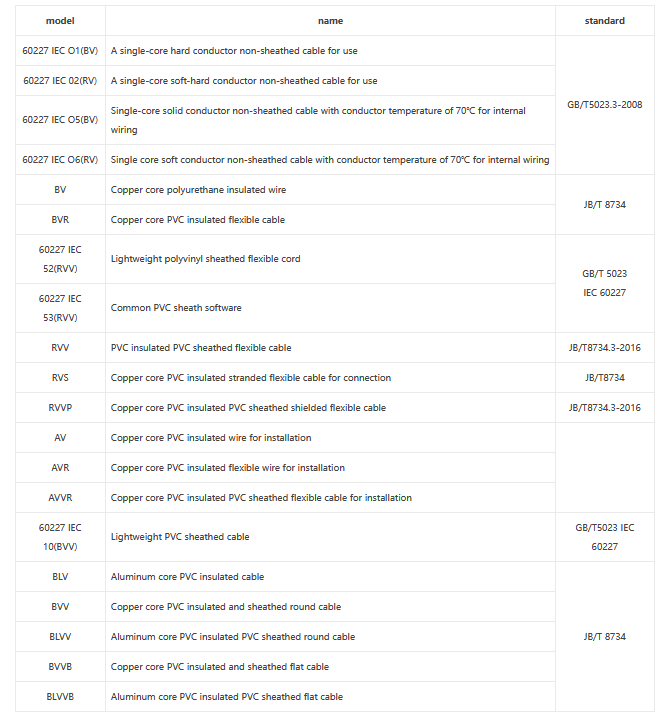

This product is produced in accordance with the standards of GB/T 5023-2008 "PVC insulated cables with rated voltages of 450/750V and below", JB/T 8734-2016 "PVC insulated cables, wires and cords with rated voltages of 450/750V and below" At the same time, it can also be produced in accordance with the International Electrotechnical Commission`s recommended standards IEC, British standards, German standards and American standards according to user needs.

Most popular related searches
temperature cable

Scope of application

This product is suitable for power devices, fixed wiring and flexible connection electrical appliances with rated voltages of 450/750V and below.

Use characteristics

The rated voltage U0/U is 450/750V, 300/500V and 300/300V.

Allowable long-term maximum working temperature of cable conductor: 70c

The ambient temperature during cable laying should not be lower than 0c

Cable bending radius:

(D-Outer diameter of cable)
