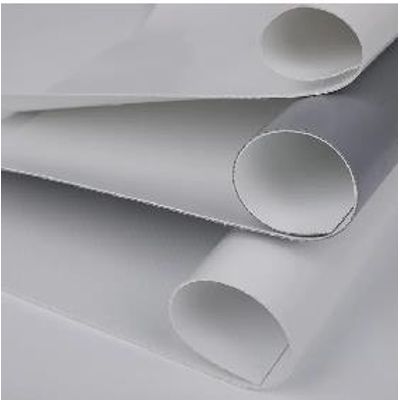

Xinria - PVC Membrane Structure Material
PVC membrane material is a composite material formed by coating PVC resin on polyester fiber base cloth and spraying PVDF surface coating. The fabric substrate has tensile strength, tear strength, heat resistance, durability, and fire resistance. The coating material has weather resistance, antifouling properties, water resistance, and light transmittance.
The surface of the PVC membrane material is extremely important. The quality of the surface treatment not only affects the self-cleaning performance of the membrane material but also affects the service life of the membrane material, anti-mildew and anti-ultraviolet properties. There are currently two common surface treatment methods for PVDF membranes on the market: weldable PVDF and non-weldable PVDF. Weldable PVDF membrane material has a low surface PVDF coating concentration, and the membrane material has almost no self-cleaning property, but the price is very cheap; non-welderable PVDF membrane material has a high surface PVDF coating concentration, which cannot be directly welded, and the processing is complicated. However, the surface of the membrane material has obvious self-cleaning properties, but the price is relatively more expensive than the weldable membrane material.
Application:
Products are widely used in membrane structure, landscape membrane, parking shed, membrane structure carport, park membrane, tensioning membrane, swimming pool membrane structure, membrane structure sketch, membrane structure bleacher, sewage plant membrane structure cover membrane structure roof and other membrane structure engineering.
- Gram Weight: 900/l050/ll00/l400gsm
- Material: 100% Polyester yarn with PVC Coating
- Structure: PVC Coated Polyester Fabric
- Width: 3-3.2m
- Length: loom
- Color: Customized
- Surface: Glossy+PVDF treatment
- MOQ: >2500m
- Density: 30*30 32*32
- Yarn: 1000d*1000d 1300d*1300d 1500d*1500d 2000d*2000d
- Flame Rctardant: Ml; M2; Bl
- Special Requirement: AntrUV. Anti-Mildew, Anti-Static, anti-scratch. Environmental (Odorless)
- Sample: A4 Size Sample Free
- Lead Time: 20-35 Working Days
- Hot-melt Coating & Knife coating technology
- Outstanding tearing strength for welding
- Flame rctardant character (optional). Ml; M2; Bl
- emperature resistance:-30-70eC
- Cold Crack Resistance. Anti-mildew and anti-bacterial. Anti ultraviolet troatment(uv), Anti-Static treatment. Waterproof
- Acrylic and PVDF treatment
