Xinyang Equipment Technology Co., Ltd

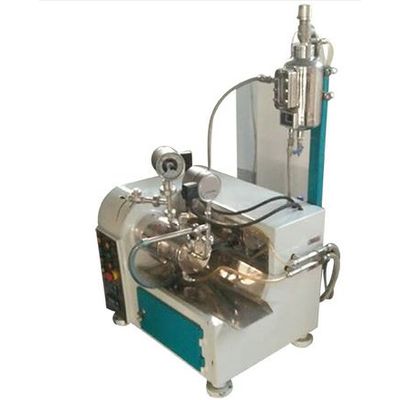

Xinyang - Model LSM-0.5L -Laboratory Disc Sand Grinder
The LSM-0.5L laboratory rod pin sand mill has a closed structure and is designed to use a sand grinding medium of 0.3-0.4mm for wet ultrafine sand grinding of solid particle materials dispersed in liquids. Suitable for multiple sanding or cyclic sanding and dispersion operations. Materials can achieve ultrafine grinding and dispersion effects in a short period of time. The value of this series of products is reflected in uniform particle size distribution, good temperature control, and low energy consumption.
Most popular related searches
particle size distribution
laboratory grinder
digital temperature controller
particle sizing
laboratory milling
laboratory mill
distributed temperature
laboratory productivity
laboratory disperser
laboratory product
- Laboratory small high-speed disperser LSM-0.5L universal laboratory rod pin sand mill
- Experimental special nano sand grinder LSM-0.5L (0.5L sand grinding chamber volume, suitable for 0.5-5kg sand grinding)
- Fineness can reach 200-300 nanometers using sand grinding medium 0.3-0.4mm
- This model is flexible to use, easy to clean, and easy to maintain, suitable for small batch experiments and production
- Laboratory rod pin sand mill
- For nanoscale laboratory use, using eccentric sand grinding disc design, sand grinding fineness ≤ 5 μ m
- Imported lip seal
- High flow, dynamic separation system
- Sand milled zirconia beads can be used with a thickness of 0.3mm-0.4mm
- High efficiency, 3-5 times higher than ordinary sand mills
- Model: LSM-0.5L
- Cylinder volume L: 0.5
- Processing batch L: 2-20
- Speed r/min: 1800
- Sand grinding efficiency kg/h: 2-10
- Drive power kw: 3.75
- Main volume l/w/h: 520*460*620
