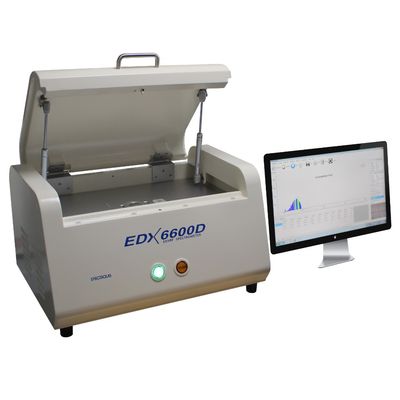

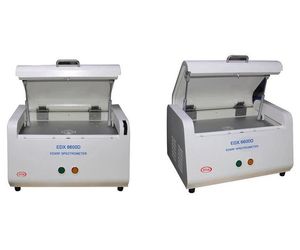

ESI - Model EDX6600D -XRF RoHS Testing Spectrometer
The EDX6600D for Consumer/RoHS, a convenient, quick scan XRF analyzer for regulatory compliance programs, provides accurate Pass/Fail results within seconds. RoHS Compliance and Consumer Safety: The EDX6600D for Consumer/RoHS, a convenient, quick scan XRF analyzer for regulatory compliance programs, provides accurate Pass/Fail results within seconds. The EDX6600D is a solid and user-friendly X-ray fluorescence (XRF) analyzer optimized for Consumer Product and RoHS regulatory compliance programs. It has a well-lit, extra-large sample chamber, easy operation, integrated camera, and a selectable analysis spot size. Action levels for Consumer Products and/or RoHS regulations are preprogrammed for rapid Pass/Fail results.
Simply the Best
- RoHS:Restriction of Hazardous Substance
- Pb, Cr, Hg, Br, Cd, Cl, As, Ba, Sb
- WEEE:Waste Electrical and Electronic Equipment
Comply with Global Regulations
The EDX6600D for Regulatory Programs is a fast, accurate, and cost effective XRF analyzer optimized for analysis of lead (Pb), cadmium (Cd), arsenic (As), mercury (Hg), chromium (Cr) and other toxic elements in metals, plastic, and mixed materials. It provides detection limits that are well within typical regulatory limits in most materials. It provides the ability to test not only at retail locations, but also at loading docks and manufacturing sites to screen imported/exported toys, jewelry, clothing, electronics, and other consumer products before they become a problem.
Reliable and Enhanced User Experience
Operation is simple and straightforward. An object is placed directly on the analysis window or, if small, secured in the sample holder/cup to orient it. The chamber door is closed and the operator presses “Start” to acquire results. The small spot collimator is used for very small objects or for small areas on an object. A digital image of the object can be stored and/or sent along with the analytical results directly to a printer in report format
- Fast and nondestructive detection of restricted elements
- Accurate with LODs as low as 1 ppm
- Safe, closed-beam XRF system
- USB interface port for high-speed data export, printing
- Fast, Accurate, Advanced Technology
- 50Watts X-ray tube, 1000 µA current (max), plus optimized beam settings for accurate analysis
- Digital multi-channel analyzer delivers fast and reliable results, with seconds
- Smart program that automatically classifies the sample type into Plastic, Iron, Brass, Tin or Aluminum matrix within 3 seconds
- Integrated camera to record analysis images
- Small spot collimation down to 0.5mm for small samples or small areas on a sample
- User friendly and highly intelligent program with factory calibration

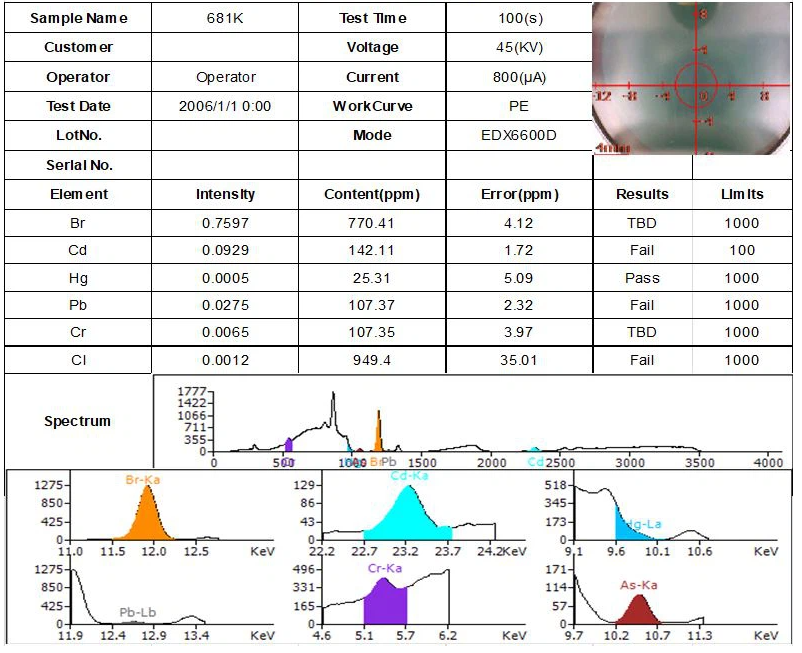

The EDX6600D PC reporting software customizes and facilitates immediate report generation, including analysis results, qualitative sample information, spectral information, and sample image. Traceable documentation makes the EDX6600D the ideal tool for a RoHS compliance tool.
The EDX6600D provides a fast, highly accurate way to determine toxic metals’ levels for quality control purpose. It allows the user to perform an on-the-spot, cost-effective, and completely non-destructive test to check for heavy metals that present in the products.

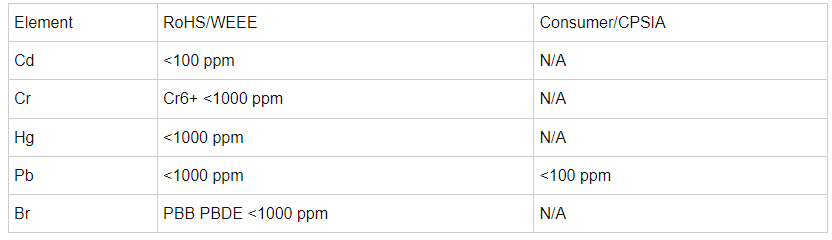

In addition to Lead, the EDX6600D provides a high level of performance for other heavy metals of interest.
- Dimensions: 550mm*525mm*350mm
- Weight: 45Kg
- Power Requirement: Provided with 100 VAC to 240 VAC, 50 Hz to 60 Hz, 150 watts power supply
- Anode: Rh or Ag
- Detector: Amptek Si-pin
- Environmental Temp Range: -10 °C to 50 °C (14 °F to 122 °F)
- Camera and Collimator: Integrated with measurement geometry; small-spot collimator; selectable diameter sizes depending on sample size
- Element Suite standard sample(ERM standard): Pb, Cr, Hg, Br, Cd, Cl, As, Ba, Sb
- Initialization standard sample
- Sample Holder/ Sample cups
- USB cable
- RoHS Check Reference standard
- Spare test windows
- Factory Authorized Training and Support available
Worldwide Restricted Hazardous Substance Regulations and Testing Methods
- EU RoHs Directive (2011/65/EU)
- EU WEEE Directive (2012/19/EU)
- USA CPSIA (HR4040)
- USA Halogen Free Directive

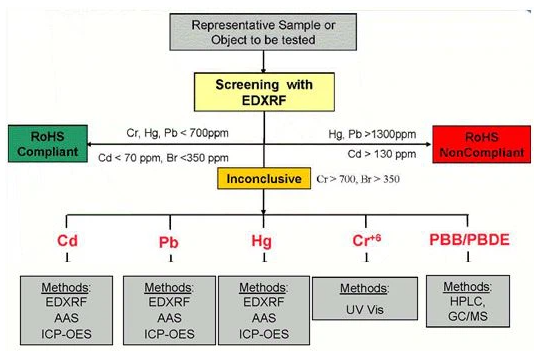

EDXRF is applied as the quick scan and screen tool for unknown sample RoHS compliance analysis. The EDX6600D combines regulatory recommended XRF technology with multiple value-added features to provide the ideal tool for a RoHS compliance analysis, affording economy of operational costs, space, and time with a seamless integration of data and results.
EDX6600D XRF analyzers offer accurate, sensitive analysis with easy-to-use reporting software in an ergonomic and dependable package. It offers detection of limits that are well within typical regulatory limits in most materials. As the fast screening tool for RoHS compliance application, EDX6600D can’t be beaten.
