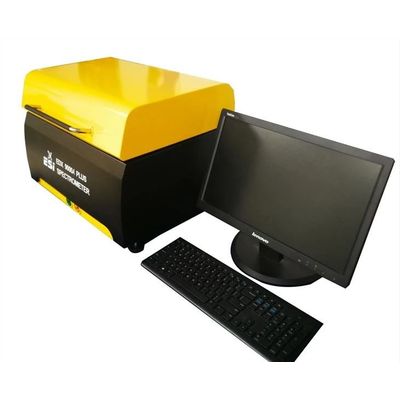

ESI - Model EDX-9000A Plus -XRF Spectrometer - Advanced Precious Metal Analyzer
EDX9000A PLUS Energy Dispersive Fluorescence Spectrometer-Expert of precious metal Analysis. XRF Analyzers, which until recent years were found in the R&D Centers and Labs for analyzing different elements, have been a new reliable choice of tool for Users. Gold Analyzing without the sample being Destructed or prepare is achieved with XRF Technology. It is fast, Easy to use, Cost effective and reliable. XRF gold analyzer ensures that the Scientific way of testing the metal gives most accurate results with various Elemental and Quantitative analysis. The EDX9000A plus’s new Fast silicon-drift-detector combines with advanced electronics and ESI superior FP analytical software to deliver exceptional performance. And whatever the task at hand, interchangeable filters and collimator (for variously sized measurement spots) are available for truly perfect, flexible instrument set-up.
- Advanced high-performance XRF Precious Metal Analyzer - Fast, Non-destructive, Super stable, highly precise
- Completely non-destructive analysis, Minimum sample prepare needed >Fast results in 10 seconds High performance Fast SDD detector can cover up to 45 elements simultaneously
- No need for daily calibration reduce test time
- Robust and solid, extremely user friendly
- Extended application available for coating thickness analysis, precious metal analysis in liquid.
- Large sample chamber with the best performance Fast Silicon Drift Detector
- Outstanding sensitivity leads to up to a factor 3 improved precision – the basis for high accuracy when analyzing minor to major element concentrations.
- World’s fastest XRF analyze–highest accuracy within the shortest measurement time, excellent precision
- High-count throughput detection system result in significantly (typically a factor 3) lower limits of detection for a wide range of elements.
- Easier, faster, more accurate than nitric acid test methods.
- Faster, more comprehensive analysis than fire assay, with comparable accuracy.
- Measure the content of all gold and precious metals without manually changing the calibration.
- Precisely determine the presence and concentration of other trace alloying elements and dangerous heavy elements, which could impact valuation and future refining needs.

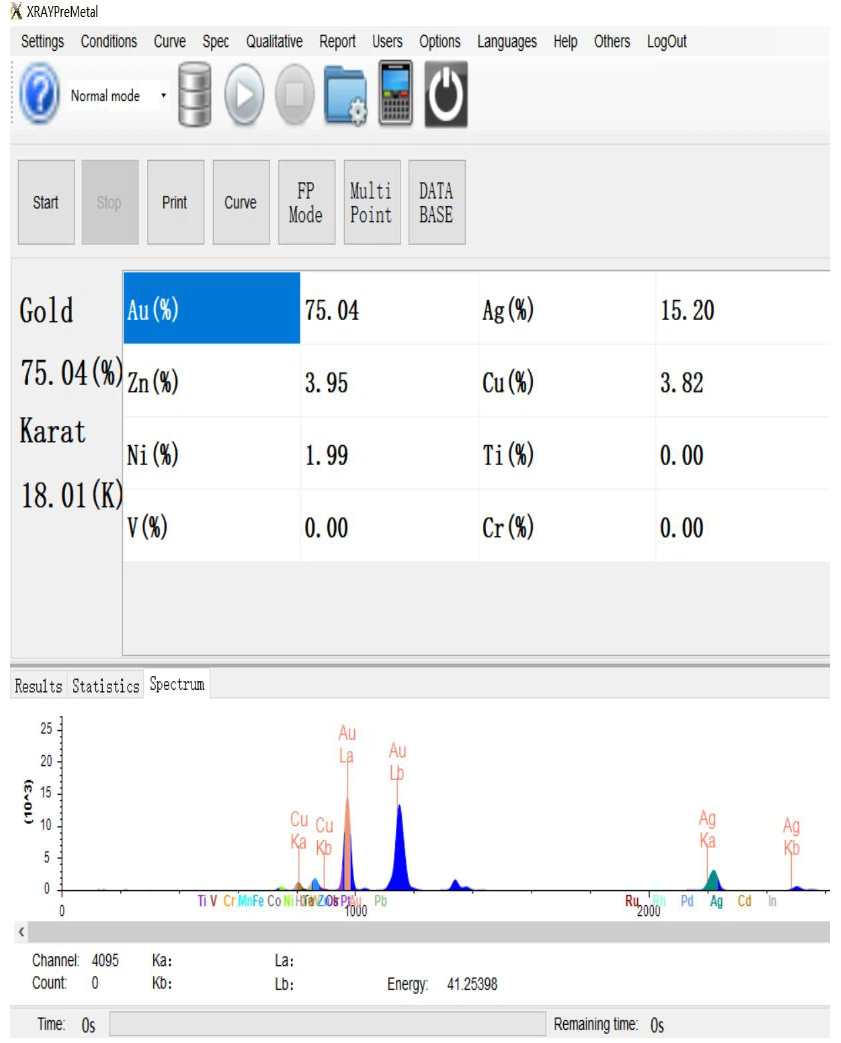

- Friendly user interface, customizable analysis report, one-click printing test report, including analysis result, sample information, spectrum information and sample image
- Eight kinds of light path collimation systems, automatically switch according to different sample sizes, and can also test different positions of the sample and then calculate the average value to reduce the error caused by the unevenness of the sample
- High-definition built-in camera, which clearly shows the sample location detected by the instrument
- Size of Spectrometer: 560mm*380mm*410mm
- Size of sample chamber:460mm*310mm*95mm
- Weight: 45Kg
- Element Range:Na11-U92
- Analysis content range:1ppm- 99.99%

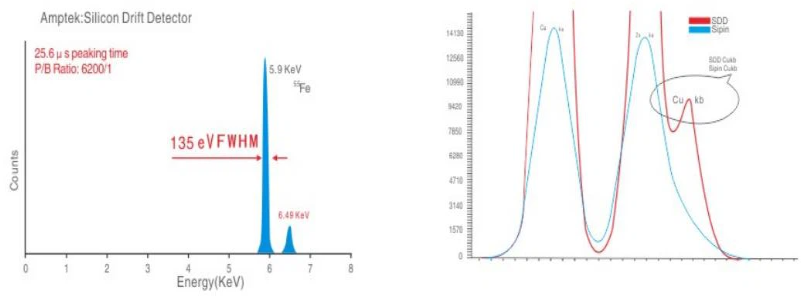

- Detector:AmpTek high resolution Fast SDD
- DPP Analyzer: 4096 Channel DPP analyzer
- Excitation Source:High performance US made X-ray tube
- HV unit:0-50kV adjustable
- Power supply:220ACV 50/60HZ
- Environment:-10 °C to 35 °C
Standard
- Au- Calibration standard
- Ring holder
- Sample cup for liquid
- USB cable
- Power supply cable
- Test Mylar
- Calibration report
- Warranty card
Optional
- Power stabilizer
- Precious Metal standard samples
- One-button operation with user friendly interface
- Customized test report
- Direct result and Karat display of all precious metals with impurities
- Auto Spectrum qualitative analysis
- Both FP and EC algorithm included in software package
