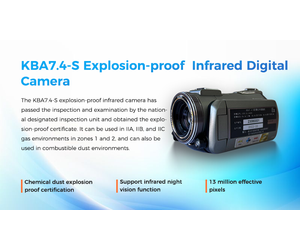

XUXIN - Model KBA7.4-S -Explosion-proof Infrared Digital Camera

Excellent explosion-proof performance: Through a variety of explosion-proof certification, it can be used safely in a variety of hazardous environments, including IIA, IIB, IIC gas environments and combustible dust environments in zones 1 and 2, providing a reliable guarantee for shooting and monitoring in dangerous areas.

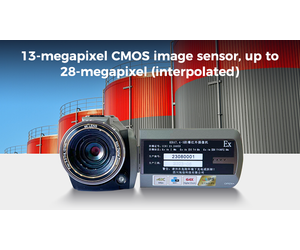

Excellent image quality: the 13-megapixel CMOS image sensor, with a maximum of 28 million (interpolated) pixels, can take high-resolution photos and videos, and can clearly record the details of the surveillance scene. Support 4K video shooting, can output 3840×2160 resolution video, the picture is clear and delicate, whether shooting static scenes or dynamic pictures, can show excellent results.

Rich and practical functions: Support infrared night vision function, even in low light or completely dark environment can shoot normally. With face detection function, it can automatically identify the face in the screen, improve the pertinence and effectiveness of monitoring. In addition, it also has anti-shake function, automatic white balance, exposure compensation and other functions, which can adapt to different shooting environments and needs.

Portable and easy to operate: small and lightweight, the size is 128mm×68mm×70mm, the weight is about 305g (without battery), easy to carry, convenient for mobile shooting and monitoring in different places. Equipped with a 3.1-inch IPS touch screen, the operation is simple and intuitive, and users can easily set menus and adjust shooting parameters.

Explosion-proof mark
Ex ib I Mb

     Ex ib IIC T4 Gb

          Ex ib IIIC T130℃ Db
Image sensor
13 megapixel CMOS sensor, up to 28 megapixel (interpolation)
Aperture
F: 3.0
Focus Distance
F = 8.13 mm
Focusing range
2.5 meters to infinity
Lens class
Digital zoom lens
zoom
64X
Storage medium
SD/SDHC cards (U3) are supported, with a maximum of 256GB
Display screen
3.1-inch IPS Touch screen (16:9)
video
Standard: 4K(3840*2160 30fps)

2K(2560*1440 30fps)

  1080P(1920*1080 30fps)

720P(1280*720 30fps)

480P(640*480 30fps)

Movement: 1080P(1920*1080 60fps)

 720P(1280*720 120fps)

480P(640*480 240fps)
photograph
6080*4560(28M)、5600*4200(24M)

5200*3900(20M)、4608*3456(16M)

4192*3144(13M)、3648*2736(10M)

3648*2048(7MHD)、2592*1944(5M)

2048*1536(3M)、1920*1080(2MHD)

640*480(VGA)
dimension
128mm×68mm×70mm
weight
Approx. 305g (without battery)
ISO
Auto /100/200/400/800/1600
Face detection function
support
White balance
Automatic/daytime/cloudy/tungsten lamp/fluorescent lamp
Anti-shake function
Support (Digital Anti-shake)
Exposure compensation
Ev-3.0 ~ EV+3.0
Selfie timing
2 seconds /5 seconds /10 seconds
WiFi point-to-point connection
Support (2.4G/5G)

Stream format :H.264
Night vision function
Support (IR CUT black and white night vision)
Hot shoe joint
Support external stereo microphone/fill light
USB interface
USB2.0: MIC IN/DC IN
Computer interface
High-speed USB2.0
Lens aperture
M=37mm
loudspeaker
built-in
microphone
built-in
battery
Intrinsic safety battery 1700mAh
Working environment
temperature
-20℃～+50℃
Relative humidity
≤95％(25℃)
Atmospheric pressure
80 kPa～106kPa
Storage temperature
-40℃～+60℃
Applicable place
It can be used in zone 1 and 2, IIA, IIB, IIC gas environment, and can be used in combustible dust environment.
Class of protection
IP54
