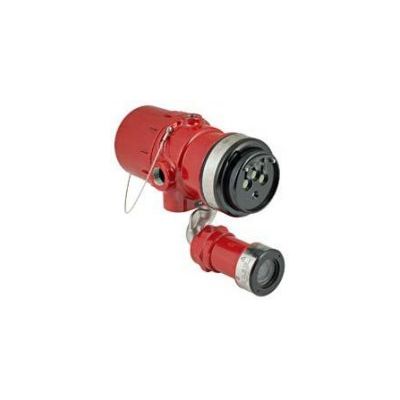

xWatch - Model X-Series -Explosion-Proof Camera With Flame Detectors

The xWatch Surveillance Camera can be attached directly to any of the Det-Tronics X-Series line of flame detectors through a factory installed integral connection adapter. With this arrangement, the camera views the same protected area as the detector. The xWatch Surveillance Camera produces a high resolution color video picture using a camera module that is mounted inside an explosion-proof NEMA 4X rated housing. The device`s explosion-proof rating makes it suitable for Class I, Div. 1, Groups B, C and D locations.

The xWatch and X-Series combination can be used in any fire and gas system application that requires CCTV surveillance capabilities.

In the event of a fire or gas alarm, the operator can immediately view the monitored area to determine whether personnel are present and safe. An accurate evaluation of the hazard’s size, nature, location and severity can be determined quickly and safely.

The utilization of a digital video recorder (DVR) captures the video image of an incident which can be analyzed for what happened before, during, and after the event.

Reliable
Because Det-Tronics` top priority is life-safety, reliability is built into the solution. In case of a flame incident, the premier X-Series flame detector alarms and immediately the xWatch camera displays the situation.

Flexible
Choose the coverage best suited for your needs. Install the camera/detector combination independent from or integrated into a complete Eagle Quantum Premier (EQP) safety system.

Functional
The X3302/xWatch combination detects/views a wide range of hazards including visible flames and invisible hydrogen fires and methane fires.

xWatch / Flame Detector Combination

• Combine with any X-Series flame detector
• Provides high resolution color video surveillance and flame detection, all in real time
• Views the same 90 degree cone of vision as the flame detector
• Superior false alarm rejection
• Real verification of detection capability with automatic and magnetic optical integrity
• Combine with detector system upgrades in remaining unused detector locations
• Compatible with LON based detectors
• Ideally suited for remote and/or inaccessible areas
• Informed, appropriate response to incidents
• Pre- and post-event analysis of video recording
• Standard or custom DVR options available
• System integrable for alarm and detection recording
