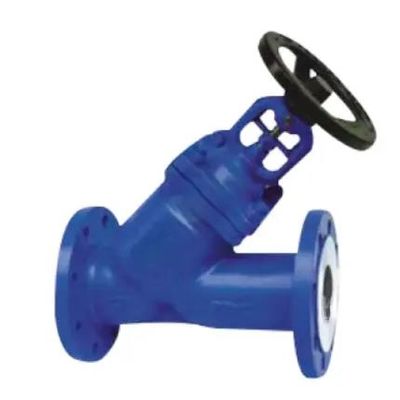

Vervo - Model ASTM A216 WCB -Y Globe Valve
Explore our ASTM A216 WCB Y Globe Valve Factory offering top-quality valves in 2 Inch, 300 LB, DN50, PN50 specifications. Crafted from Carbon Steel to ASME B16.34 standards, our valves feature Full Bore design with Handwheel Operation, RF connection, and sizes ranging from 2 to 25 Inch (DN15-DN625).
Most popular related searches
Y TYPE-Globe valve, Carbon steel, 2 inch, 300 LB, WCB, RF.
Valve description:
- Y TYPE-Globe valve, FULL BORE.
- Design: ASME B16.34.
- Body: ASTM A216 WCB
- Nominal size: 2 INCH.
- Nominal class: 300 LB.
- End Connection: RF.
- Operation: Handwheel
- Face to face: ASME B16.10.
- Test and inspection: API 598.
Product Range:
- Body material: Carbon Steel.
- Normal diameter: 2 - 25 Inch (DN15 - DN625).
- End connection: BW, Flange.
- Pressure range: Class 150 - 2500 LB (PN10 - PN420).
- Working temperature: -29? - +400?.
- Product: Y-Globe valve.
- Nominal diameter: 1/2 Inch - 2 Inch.
- Design temp.: Down to -29?.
- Design pressure: Class 150 - 2500 LB.
- Material: Carbon Steel.
- Design standard: ASME B16.34.
- Face to face: ASME B16.10.
- Operation: Handwheel
- Connection end: BW, Flange.
- Test standard: API 598.
- Package: Plywood
- Application: The oil and gas industry
