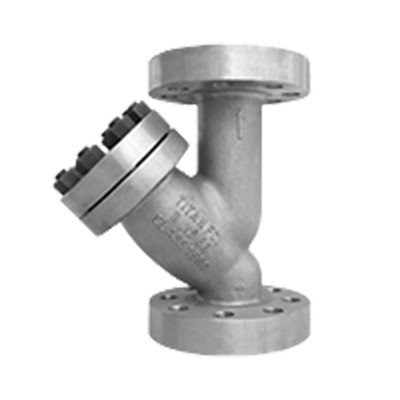

Titan - Model YS68-SS -Y Strainer

SHARE

Product Features: Rugged - High Quality Design. Large Straining Capacity. Precision Machined Seats. Encapsulated `CG` Style Gasket. Self Cleaning Capability. Epoxy Painted.

Most popular related searches
Y-strainer
ASTM A351
strainer
gaskets
  • Body Material: Stainless Steel (A351 Gr. CF8M)
  • End Connection: Flanged - RF Ends
  • ASME Rating: Class 1500
  • Size Range: 2 in ~ 8 in

  • Stainless Steel - ASTM A351 Gr. CF8M - Class 1500

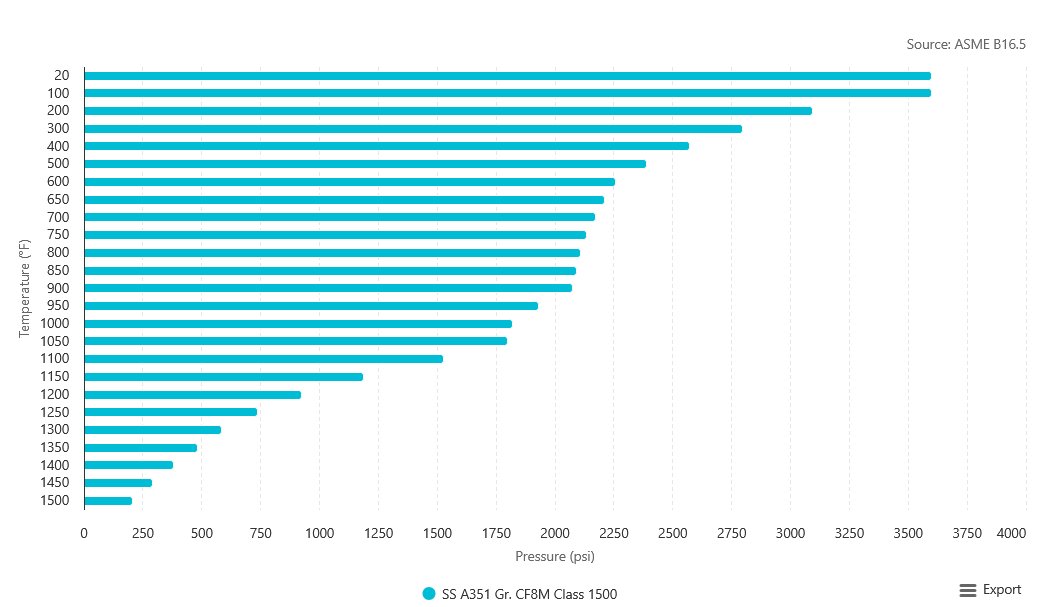

  • 2 ~ 8 - WOG (non-shock): 3600 psi @ 100 °F
