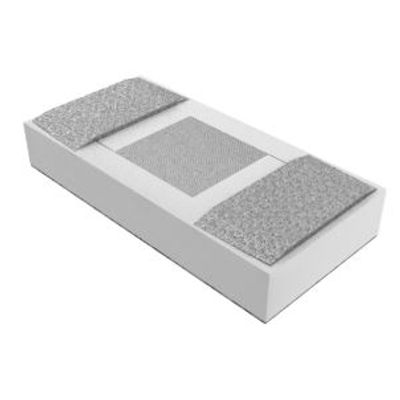

YAGEO Nexensos - Model SMD 1206 SC Sinter -Temperature Sensor

The SMD 1206 SC Sinter is a surface mount device (SMD) temperature sensor designed for precise thermal management applications. It offers a nominal resistance of Pt1000 Ohms, utilizing a high precision platinum element known for stable resistance-temperature characteristics. The sensor exhibits a temperature coefficient of 3850 ppm/K, ensuring accurate temperature measurement across a range from -50 °C to +200 °C. It adheres to the F 0.6 (2B) tolerance class, providing sufficient accuracy for various industrial applications. The SMD package facilitates sintering on the backside for optimal heat transfer, while the topside is suitable for ultrasonic wire bonding. This design aids in effective thermal interfacing and minimizes self-heating with a factor of 0.4 K/mW when unassembled. The device boasts an insulation resistance of 1 GOhms and complies with RoHS standards, signaling its environmental adherence. It caters to applications in automation, electronics, and other industrial domains requiring robust and reliable thermal sensor solutions.
