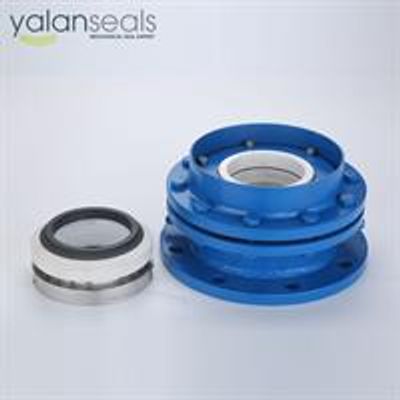

YALAN Seals - Model 212 -YALAN 212 Mechanical Seal for Glass Lined Reactors and Vacuum Devices
FromYalan Seal Ltd
Industrial Standards: HG/T2057-2003
Scopes of Application: widely used in chemical engineering, pharmacy, pesticide, fermentation, spice production, aginomoto production and water treatment. It is specifically designed for glass lined reactors and vacuum devices.
Operation Parameters:
Pressure: 0 to 0.5 MPa
Temperature: - 40 ºC to 150 ºC
Linear Speed: 3 m/s or less
Materials:
Rotary Ring Face: PTFE
Stationary Ring Face: 09AL2O3/TC/SS304
Elastomers: FKM/PTFE
Springs: SS304/SS316
Metal Parts: SS304/Q235/Glass Lining
Mediums: sulfuric acid, hydrochloric acid, chlorine and other mediums without particles, expect for hydrofluoric acid and crystalline mediums.
