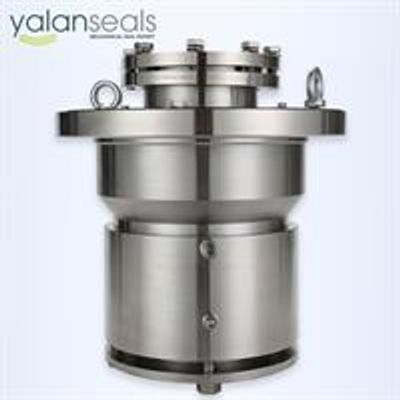

YALAN Seals - Model DTM145 -YALAN DTM145 Mechanical Seal for Reactors and Agitators
FromYalan Seal Ltd
Structural Features: double end, unbalanced. This component is a cartridge seal and has a compact structure with good compatibility and easy installation. This mechanical seal is fully self-designed by YALAN Seals. The spacer fluid and filler flushing fluid inlets and outlets should have an angle of 25º with the flushing fluid inlets and outlets.
Industrial Standards: Not available right now.
Scopes of Application: mainly used in reaction kettles and agitation equipment.
Operation Parameters:
Pressure: no more than 0.125 MPa
External Flushing Pressure: 0.2 ~ 0.4 MPa
Spacer Fluid Pressure: 0.6 MPa
Temperature: 65 ºC
Linear Speed: no more than 108r/min
Mediums: ammonium sulfate (crystal).
