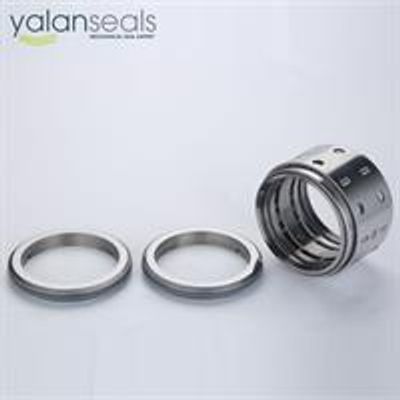

YALAN Seals - Model MN206 -YALAN MN206 Mechanical Seal for Slurry Pumps and Desulphurization Pumps

Industrial Standards: DIN24960, GB6556, ISO3069 Scopes of Application: widely used for working with mediums such as crystallized acid, alkali and organic solvents. Used in coal washery, mines, water treatment, metallurgical plants, oil refining, and aluminium oxide production. It is specifically designed for slurry pumps and desulphurization pumps. Operation Parameters: Pressure: 0 to 1 MPa Temperature: - 40 ºC to 180 ºC Linear Speed: 15 m/s or less Materials: Rotary Ring Face: Carbon/SiC/TC Stationary Ring Face: Carbon/SiC/TC Elastomers: FKM/Aflas/EPDM/FFKM Springs: SS304/SS316/HC276 Metal Parts: 2Cr13/SS304/SS316L Mediums: Solid content no more than 25% such as coal cinder, slag, clinker, slurry, alumina powder etc.
