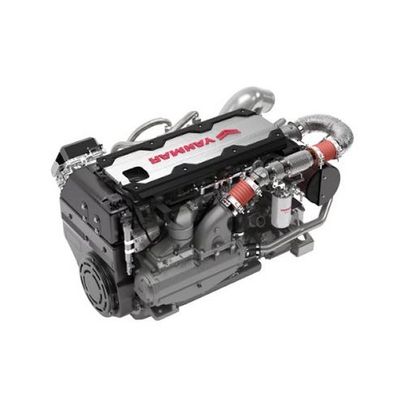

Yanmar - Model 6LF485 -Marine Engine
Exhaust mixing elbow [high riser]. 12V Electric system [single pole] / 24V Electric system [2-pole]. Flexible mounts. Alternator 12V – 90A / 24V – 70A. VC20 Vessel Control System. Electronic CAN-bus control head. Backup Panel. Lubrication oil evacuation pump [manual].
Most popular related searches
water cooling
engine emissions
EPA 3
water engineering
marine exhaust
riser system
cooling water
cooling system
- Rated Output : 356 kW / 485 mhp
- Rated Speed : 3000 rpm
- Displacement : 6.728 L / 411 cu. in
- No. of cylinders : 6 cylinders
- Cylinder Bore x Stroke : 104 mm x 132 mm / 4.10 in x 5.20 in
- Configuration : In-line, 4-stroke, vertical, water-cooled diesel engine
- Combustion system : Direct Injection, Bosch Common Rail System
- Aspiration : Turbocharged & Intercooled
- Alternator : 12V - 90A, 24V - 70A
- Dry weight without gear : 780 kg / 1720 lbs
- Dimensions : 1519 mm x 893 mm x 881 mm
- Controls : Electronic
- Certifications : RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C EMC
- Secondary alternator 24V – 110A including smart regulator
- Secondary alternator 12V – 125A or 24V – 65A [2-pole]
- Second or third station
- Front-PTO connection
- Hot water connector
- NMEA 2000 Engine monitoring system
- JC20A Inboard Joystick
- Extension harness [3m, 5m, 10m]
- Man Over Board Switch
